Configuring Switch AAA Servers

To add and manage AAA servers that the controller can use to authenticate users, complete the following steps.

  1. Select Network > Wired > Switches > AAA.
  2. Select Switch Group. On the Details pane, click Configuration > Common Configuration > Configure > AAA Server > Create.

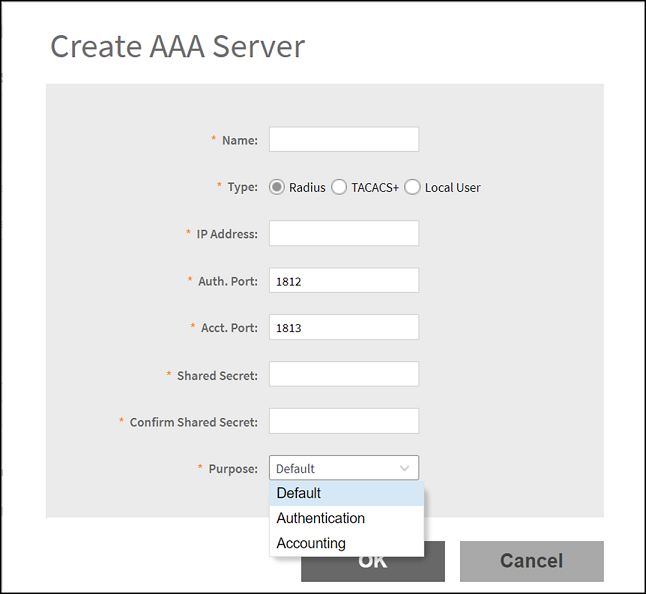

    The Create AAA Server page is displayed.

    Creating Switch AAA ServerCreating Switch AAA Server

  3. Enter the AAA server name.
  4. For Type, select the type of AAA server to authenticate users:
    • RADIUS
    • TACACS+
    • Local User
  5. Enter the following information:
    • IP Address: Enter the IP address of the AAA server.
    • Auth Port: Enter the authentication port that the server is using.
    • Acct Port: Enter the accounting port that the server is using.
    • Shared Secret: Enter the shared secret.
    • Confirm Shared Secret: Re-enter the shared secret to confirm.
    • Purpose: You can configure mutiple RADIUS servers by selecting either Default, Authentication or Accounting from the list.
  6. Click OK.
Note: You can also edit or delete the server by selecting the options Configure or Delete from the Administrator tab.
Note:
SCG-103623
ICX switch fails to delete the TACACS+ and Radius AAA servers when pushed from the controller or virtual controller if SNMP query is disabled in the switch or if the switch is pre-configured before joining controller or virtual controller.
Parent topic: Working with AAA Servers
