Creating Social Media Login Profile

When end-user associated with an OAuth 2.0 WLAN, launches his browser. AP redirects it to the OAuth 2.0 provider login page. The end-user should enter his account and password to authenticate with OAuth 2.0 provider. AP sets the end-user status as authenticated and user is able to use internet.

To configure social media authentication configuration, perform the following:

  1. Go to Security > Authentication > Non-Proxy (Social Login).
    This displays the zones associated with the Non-Proxy (Social Login).
  2. In the Non-Proxy (Social Login) screen, select a Zone and click Create.
    This displays Create Social Media Login Profile page.
  3. Enter the values in General Options and enable the Social Auth Option tabs.
  4. After you have enabled the Social Media Logins it is mandatory to provide the client ID/Secret. If you don't have one, click on the hyperlink provided in Create Social Media Login Profile screen to generate a Client ID and Client Secret for particular social media website.
  5. Add domains to the Whitelisted Domain field by entering the domain name. For example,
    Note: Microsoft based Social media authentication do not support corporate accounts, but personnel email account.

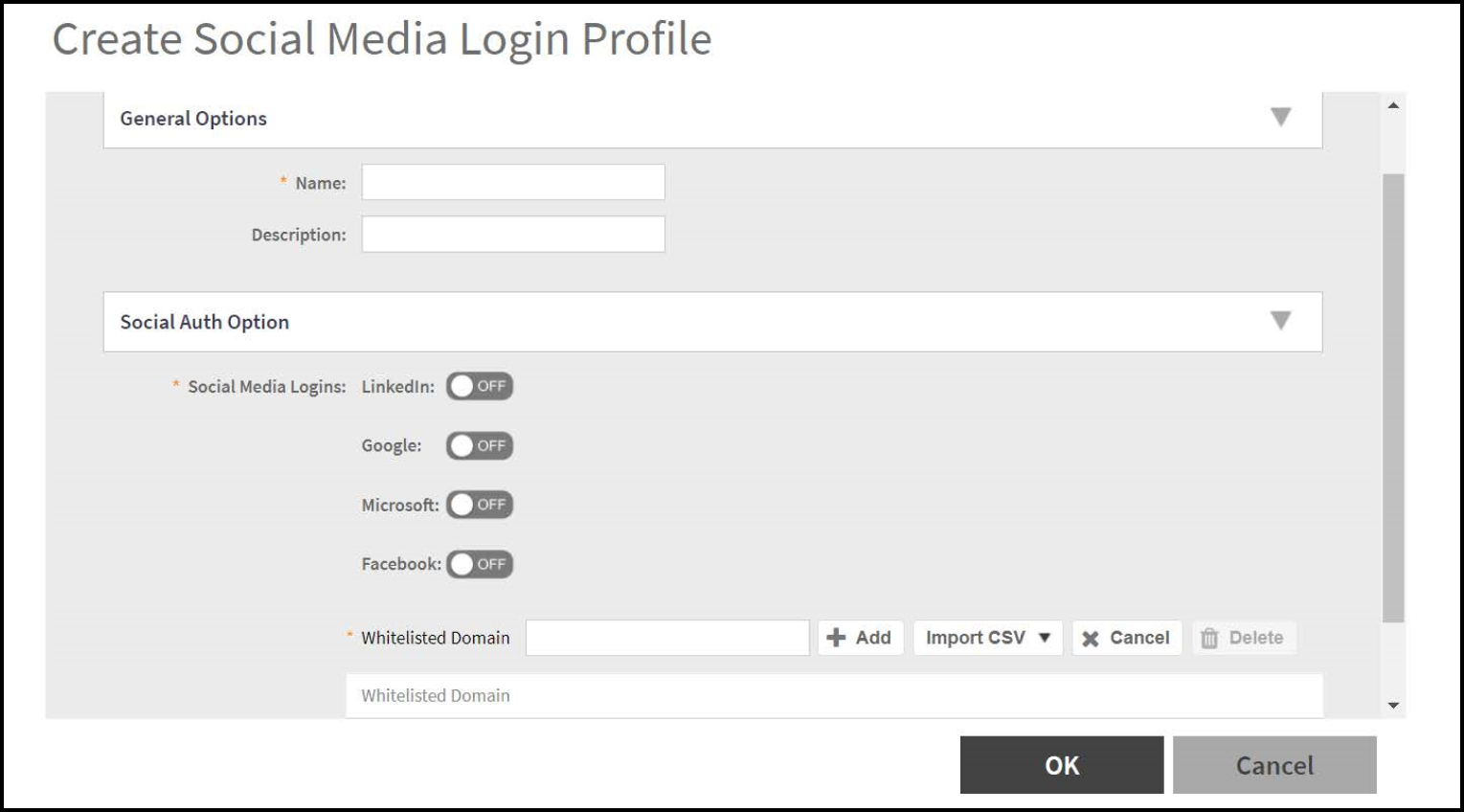

    Create Social Media Login Profile

Parent topic: Authentication
