ICX 7650 Stacking Topologies
All ICX 7650 models support stacking from Module 3 on the rear panel. ICX 7650 stacks containing any combination of ICX 7650 models can be connected in linear or ring configurations.
ICX 7650 100-Gbps Linear Stack

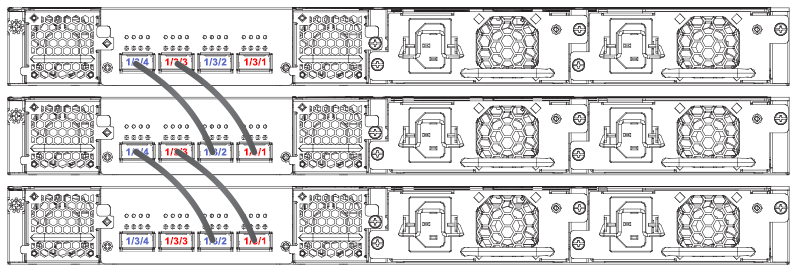

The following figure depicts a three-unit stack of ICX 7650 devices configured in a 100-Gbps linear stack.
ICX 7650 100-Gbps Ring Stack

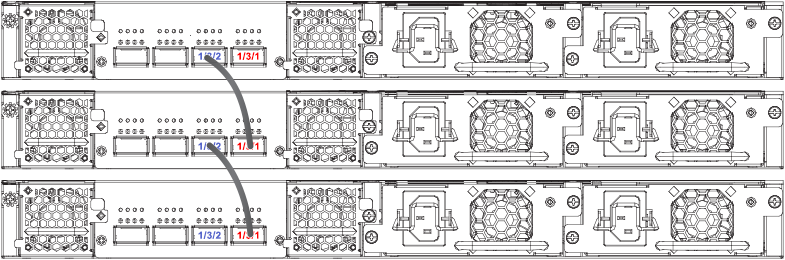

The following figure depicts a three-unit stack of ICX 7650 devices configured in a 100-Gbps ring stack.
ICX 7650 40-Gbps Linear Stack

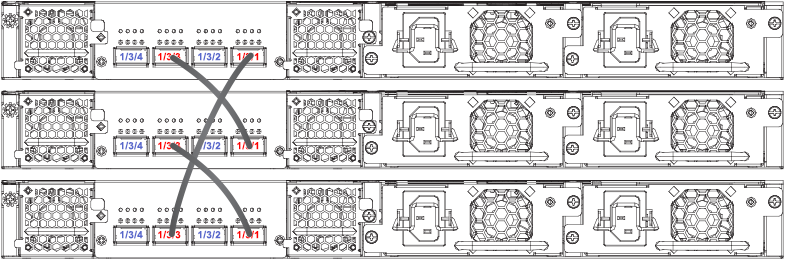

The following figure depicts a three-unit stack of ICX 7650 devices configured in a 40-Gbps linear stack.
ICX 7650 40-Gbps Ring Stack

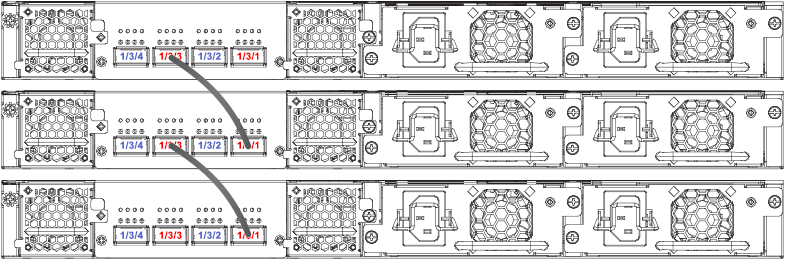

The following figure depicts a three-unit stack of ICX 7650 devices configured in a 40-Gbps ring stack.
ICX 7650 40-Gbps Trunk

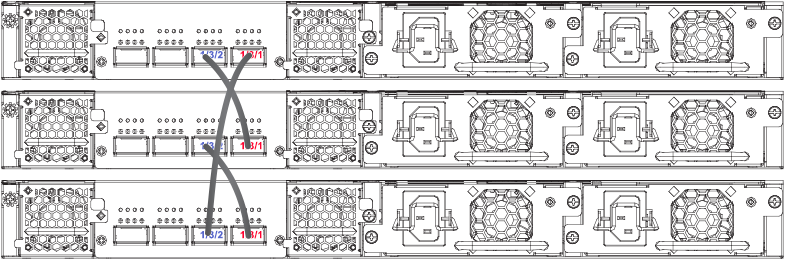

The following figure depicts a three-unit stack of ICX 7650 devices configured in a 40-Gbps stack with a trunk.

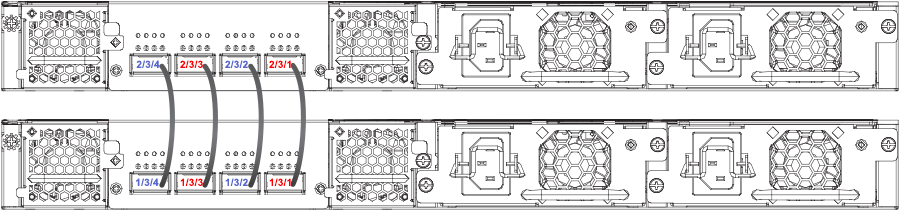

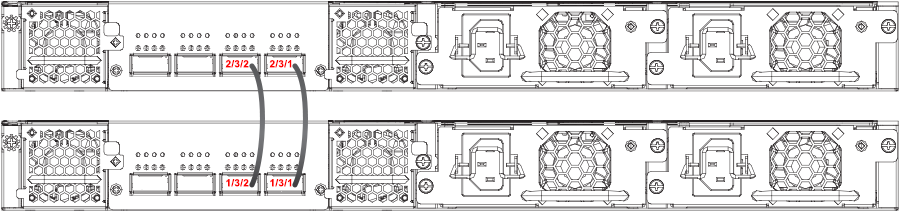

ICX 7650 Two-Unit Stack with Linear-Topology Trunk
The following figures depict a two-unit stack linear-topology trunk for a 40-Gbps connection and for a 100-Gbps connection. All ICX 7650 models support this type of trunk, which improves redundancy and bandwidth. For more information, refer to Configuring Two-unit Stack Linear-topology Trunks.
