Managing Link Aggregation Groups (LAGs)

Controller provides an option to define LAGs at an individual switch level.
  1. From the main the menu, go to Network > Wired > Switches.
    The Switches page is displayed.
  2. Select a Domain > Switch Group or specific Switch Group, and then choose the Switch.

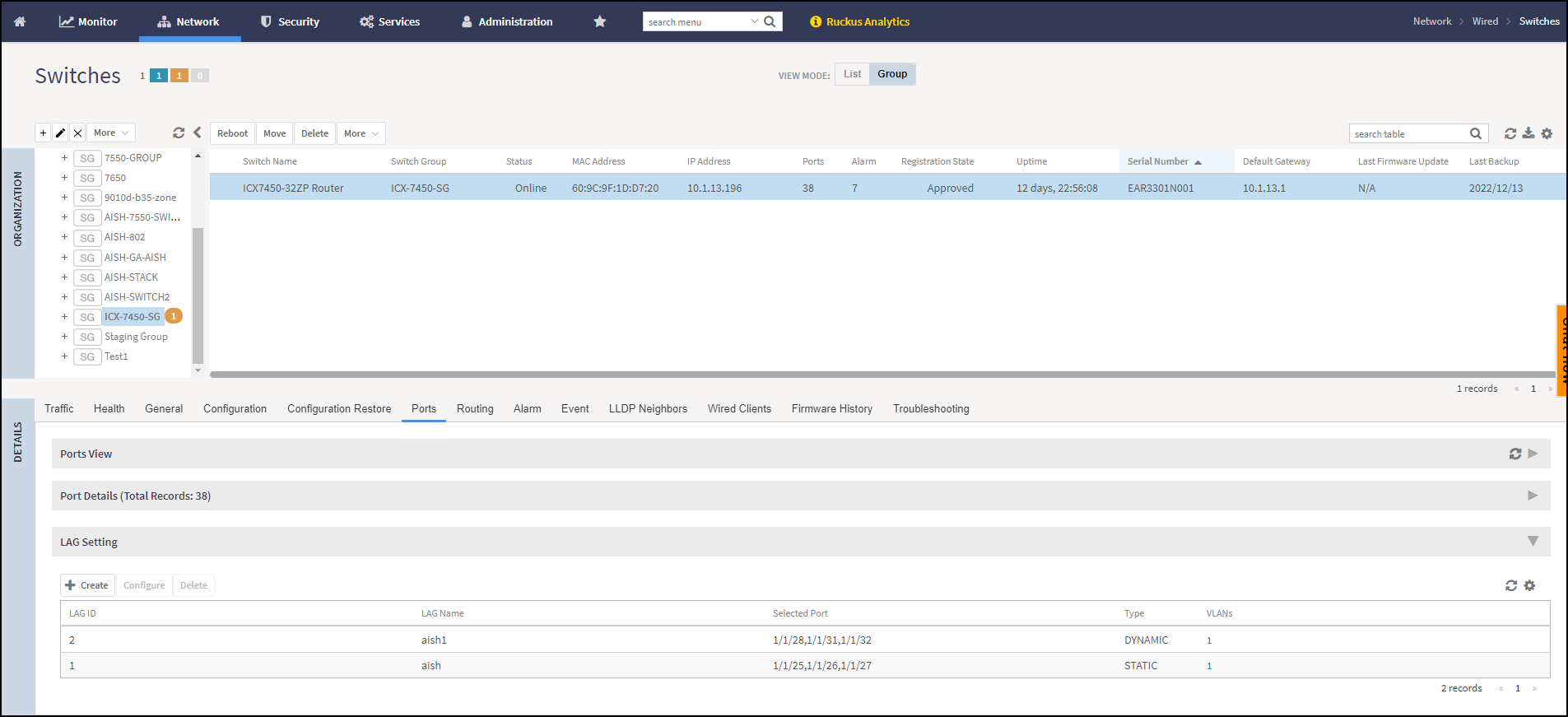

  3. In the Details pane, click the Ports tab.

    Ports

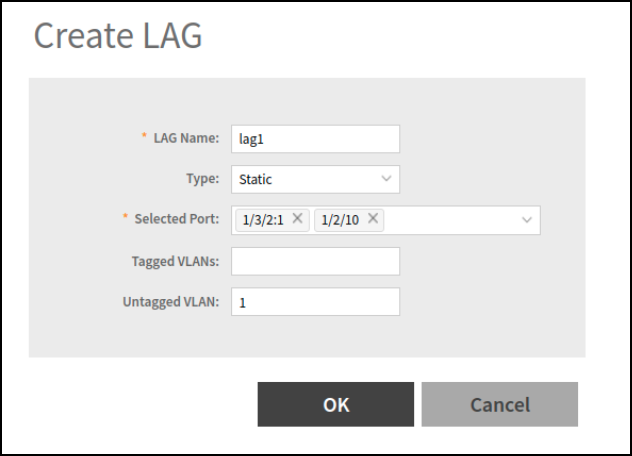

  4. In the LAG Setting section, click the Create icon to display the Create LAG dialog box.

    Creating LAG

    Creating LAG
  5. Complete the following fields:
    1. LAG Name: Enter a name.
    2. Type: Select either Static or Dynamic from the list.
    3. Selected Port: Add a breakout port to the selected port.
      Note: You are required to manually configure breakout ports on the switches.
    4. Tagged VLANs: Enter the tagged VLAN ID or VLAN ID range.
    5. Untagged VLANs: Enter an untagged VLAN ID.
  6. Click OK.
Parent topic: Port Settings
