Ability to Convert Standalone Switch to Stack

This feature allows the Standalone switch to convert into a stack by adding member switches.
Complete the following steps to convert standalone switch into stack.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. Select a Domain > Switch Group or Switch Group and select the Switch.

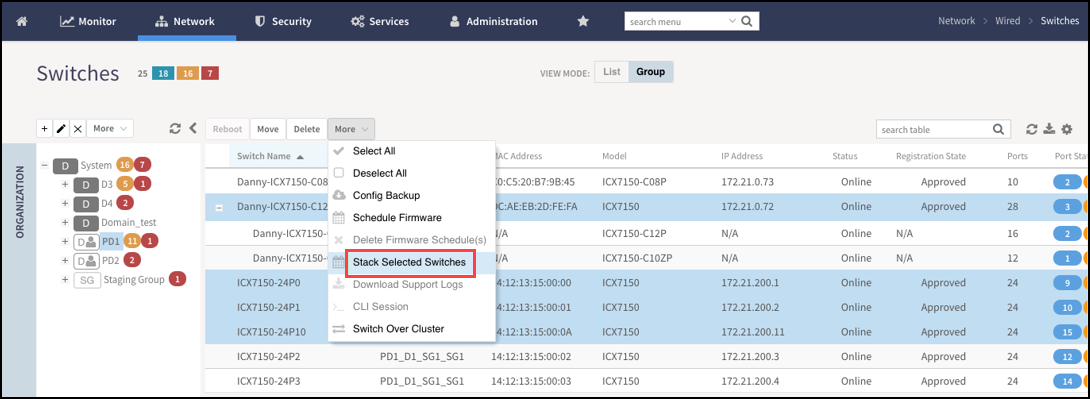

  3. To add standalone switch to the stack, click More > Stack Selected Switches

    Stack Selected Switches

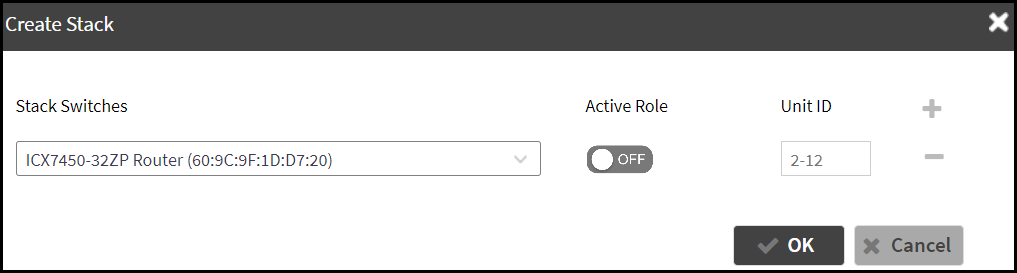

    The Create Stack dialog box is displayed. Turn Active Role ON.

    Create Stack Dialog Box

  4. In the Edit Stack Member page, click + or - to add or remove the stack entry. A RUCKUS stack contains from two to 12 units configured in a ring or linear topology. The units in a stack are from the same model family; for example, a stack can be an ICX 7150 stack, an ICX 7250 stack, an ICX 7450 stack, an ICX 7650 stack, or an ICX 7850 stack.
    Note: From FI 09.0.00, the maximum stack size for ICX 7150 and ICX 7250 devices are limited to eight units in a stack.

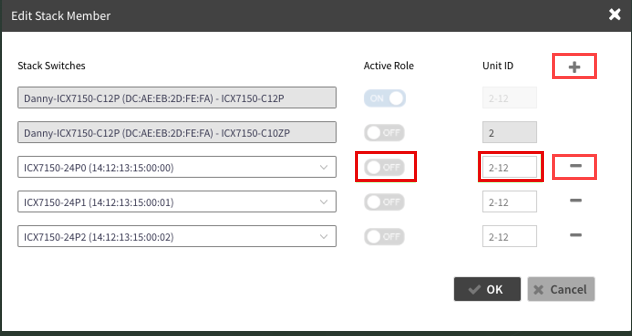

    Editing the Stack Member

    Editing the stack member

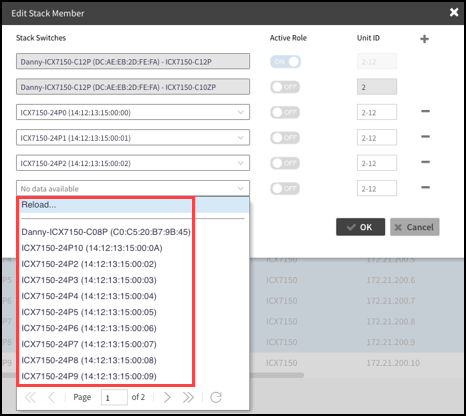

    Listing Online Switches of the Same Family and Switch Group

    Listing online switches of the same family and same switch group
  5. Click OK.

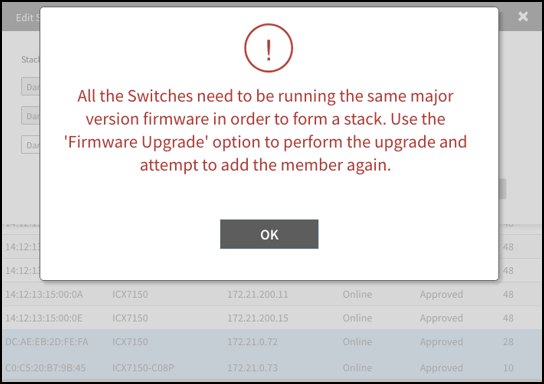

    Note: If stack and switch are running different version of an image, an error message is displayed.

    Displaying Error Message

    Displaying Error Messsage
