Configuring Selective QinQ

This task enables the configuration of Selective QinQ mappings by associating specific CVLANs with an SVLAN on a given port.

Perform the following steps to configure Selective QinQ.

  1. From the main menu, select Network > Wired > Switches.
    The Switches window is displayed.
  2. Select a switch.
  3. Click the Ports tab in the Details area.
  4. In the Port Details section, select a port and click Selective QinQ.

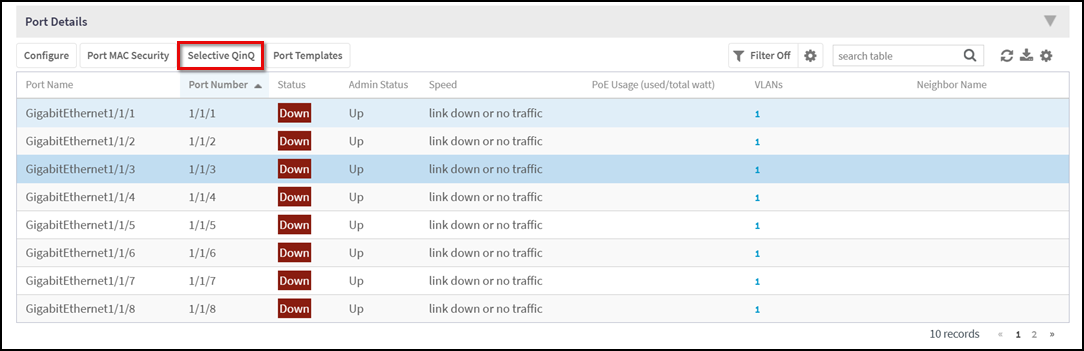

    Clicking the Selective QinQ Button

    Clicking the Selective QinQ Button
    The Selective QinQ Port Number window is displayed. You will see three buttons - Create, Configure, and Delete - which allow you add a new Selective QinQ rule, modify an existing rule, and delete the selected rule, respectively.

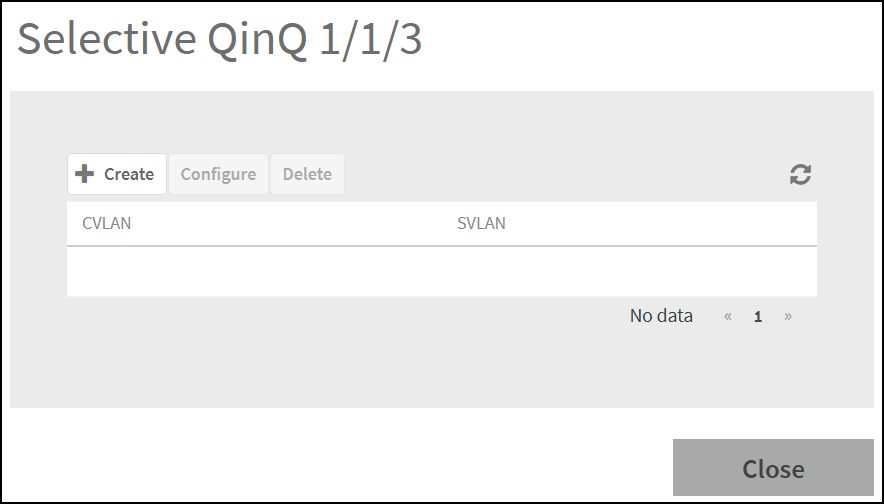

    Selective QinQ Port Number Window

    Viewing Seletive QinQ Port Number Window
  5. Click Create.

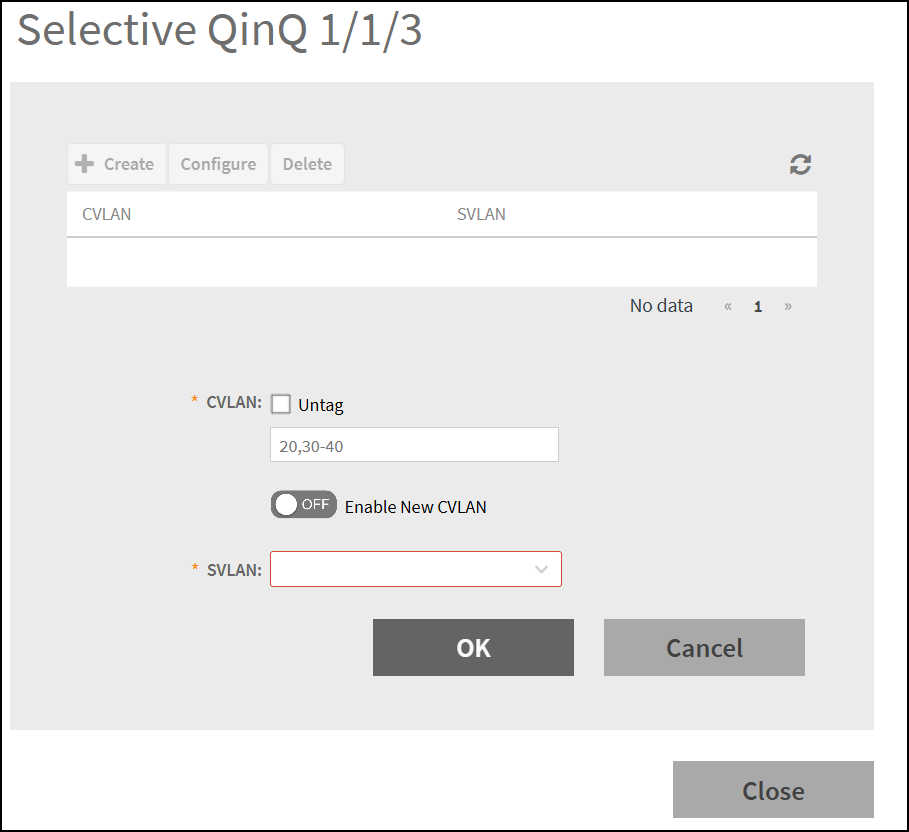

    Configuring the Selective QinQ Parameters

    Configuring the Selective QinQ Parameters
    Configure the following parameters.
    1. CVLAN: Enter the Customer VLAN ID in the textbox for which you want to apply QinQ.
    2. Untag: Select this checkbox if you want to include untagged traffic as part of the matching CVLANs.
      Note: The Untag VLAN in the port must be empty when configuring an untagged CVLAN.
    3. Enable New CVLAN: Click the Enable New CVLAN toggle button to enable (ON) to enter a new CVLAN.
    4. New CVLAN: Enter a new inner VLAN (CVLAN) that does not already exist in the configuration.
    5. SVLAN: Select the Service VLAN (outer VLAN tag) from the drop-down list to be applied when traffic with matching CVLANs is received.
  6. Click OK to apply the configuration.
  7. Click Close to close the window.
    You have successfully created a Selective QinQ rule.
