Creating Routing Configurations
You can create, edit, and delete routing configurations for a switch by performing the following steps.
Note: When SmartZone is configured in 'IPv6 only' mode, it removes support for
ACL.
- From the main menu, go to
to display the window.The Switches page is displayed.
- Select the or specific Switch Group, and then choose the switch.

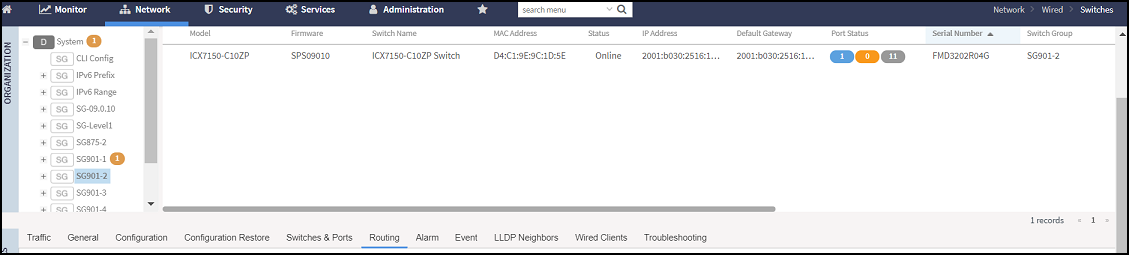

- In the Details pane, click the Routing tab.

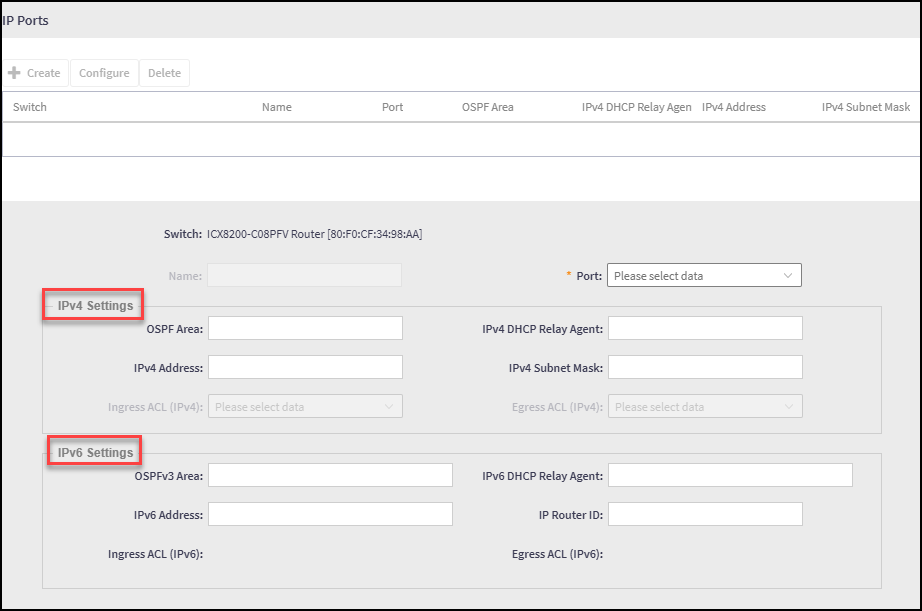

- In the IP Ports section, click Create.
- The IP Ports page is displayed.Complete the following fields:
- Switch: Select the switch from the drop down list.
- Name: Enter a name.
- OSPF Area: Enter the OSPF area IPv4 address.
-
7.0 Beta FeaturePort: Select the breakout port number from the list.
- DHCP Relay Agent: Enter the DHCP relay agent IP address.
- IP Address: Configure the IP address on the selected breakout port.
- IP Subnet Mask: Enter an IP subnet mask.
- Ingress ACL: Select the ACL for the ingress network interface.
- Egress ACL: Select the ACL for the egress network interface.
- Click OK.

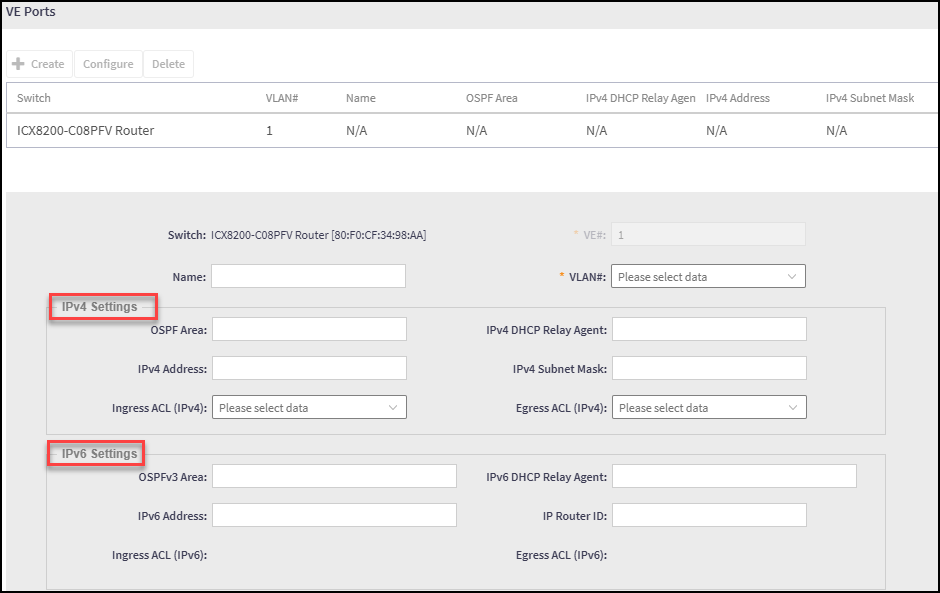

- In the VE
Ports section, click Create.Complete the following fields:
- Switch: Select the switch from the list.
- VE#: Enter the VE number. Range: 1 through 4095.
- Name: Enter a name.
- OSPF Area: Enter the OSPF area IPv4 address.
- VLAN#: Select the VLAN from the list.
- IP Router ID: Enter the Router Id IPv4 address.
- DHCP Relay Agent: Enter the DHCP relay agent IP address.
- IP Address: Enter a unicast IP address.
- IP Subnet Mask: Enter an IP subnet mask.
- Ingress ACL: Select the ACL for the ingress network interface.
- Egress ACL: Select the ACL for the egress network interface.
- The VE Ports ports page is displayed.
- Click OK.
