Network Segmentation - SZ-DP - Data Plane
Redundancy for VNIs, NAT, and DHCP
Data Plane Redundancy for Network Segmentation
When normal data plane is
offline, redundant data plane takes charge of the same VNI
range.

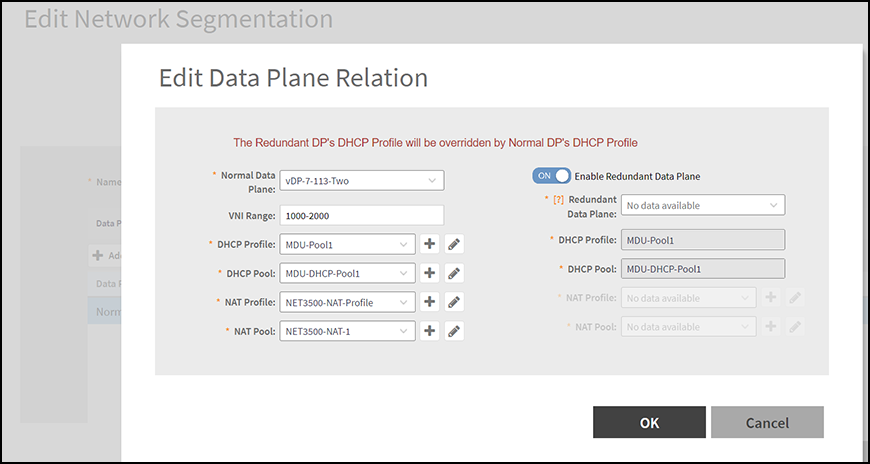

The warning message "The Redundant DP's DHCP Profile will be overridden
by Normal DP's DHCP Profile" will be displayed.
Each data
plane establishes inter-tunnel and detects the "keep
alive" to each other.
The redundant data plane detects inter-tunnel
keep alive, if normal data plane is idle for over
60 seconds. The redundant data plane takes charge
of the VNI range, until the normal data plane is
back online.
