Importing Authorized Public Keys into the ICX Device
SSH clients that support RSA authentication normally provide a utility to generate an RSA key pair. The private key is usually stored in a password-protected file on the local host. The public key is stored in another file and is not protected. You must import the client public key for each client into the RUCKUS ICX device.
Note: The keys must be in RFC 4716 format before import.

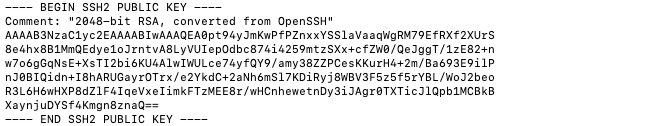

- Collect one public RSA key from each client to
be granted access to the RUCKUS ICX device, and list the keys in one file. The following example shows a public key file containing one public key.Note: The public key file may contain up to 16 keys.Note: Each key in the public key file must begin and end with the first and last lines shown in the example. If your client does not include these lines in the public key, you must add them manually.
- Enter the
copy tftp flashcommand followed by the IP address of the TFTP server and the public key filename, and use the ssh-pub-key-file keyword, to import the public key file into the active configuration of the RUCKUS ICX device from a TFTP server.The following example copies the public key file pkeys.txt to the ICX device from the TFTP server at IP address 10.168.1.234. - (Optional) Enter the
show ip client-pub-keycommand to confirm that the public key file has loaded correctly as shown in the following example.device# show ip client-pub-key ---- BEGIN SSH2 PUBLIC KEY ---- Comment: "2048-bit RSA, converted from OpenSSH" AAAAB3NaC1yc2EAAAABIwAAAQEA0pt94yJmKwPfPZnxxYSS1aVaaqWgRM79EfRXf2XUrs 834hx881MmQedye1oJrntvA8LyVUIepOdbc874i4259mtSXx+cfZW0/QeJggT/1zE82+n w706gGqNsE+XsT12bi6KU4Al2IWULce74yfQY9/amy38ZPCesKKurH4+2m/Ba69391lp nJ0BIQidn+I8hARUGayrOTrx/e2^kdC+2aNh6mS17KDiRyj8WBV3F5z5f5rlYBL/WoJ2beo R3L6H6wHXP8dZ1F4IqeVxeIimkFTzMEE*r/wHCnhewetnDy3iJAgr0TXTicJ1Qpb1MCBkB XaynjuDYSf4Kmgn8znaQ== ---- END SSH2 PUBLIC KEY ----
