Commonly Used Show Commands

The following show commands can be used in basic IPsec troubleshooting, which helps in checking IPsec tunnel health and triaging IPsec issues.

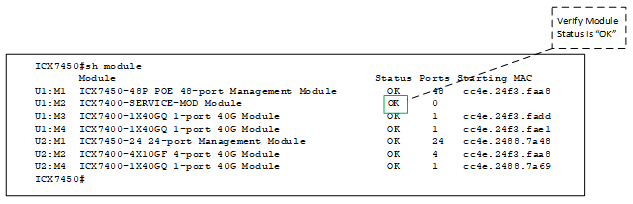

Show Module

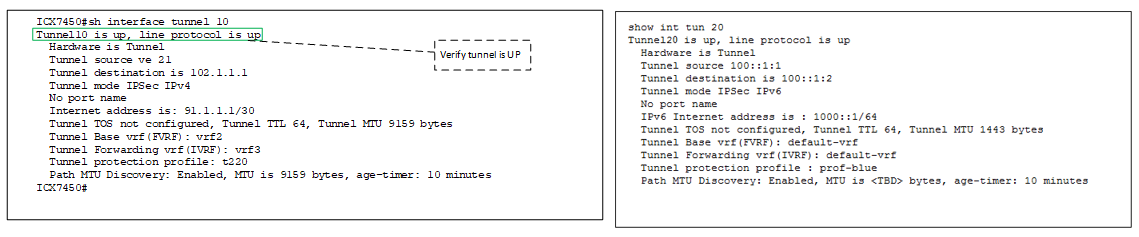

Show Interface Tunnel for IPv4 and IPv6 Tunnels

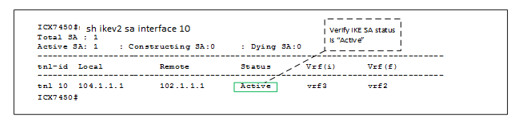

Show IKEv2 SA Interface

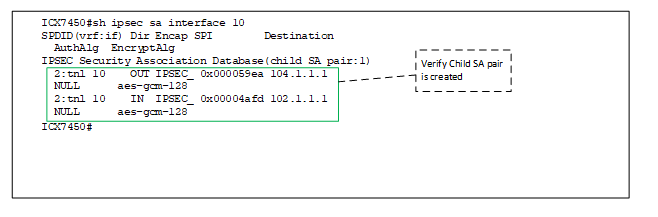

Show IPsec SA Interface

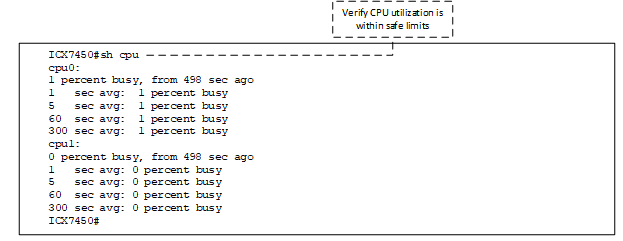

Show CPU

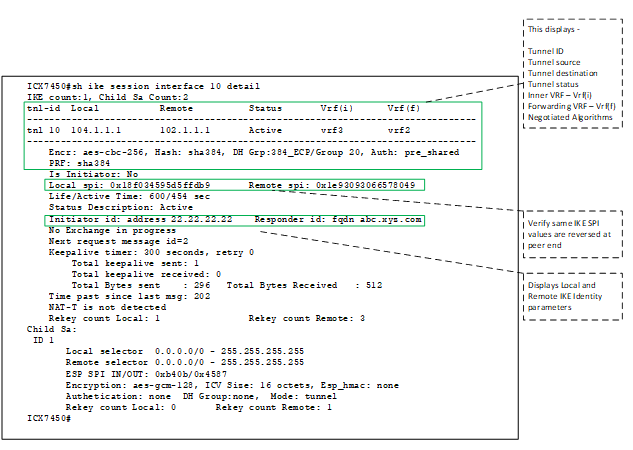

Show IKE Session Interface Detail

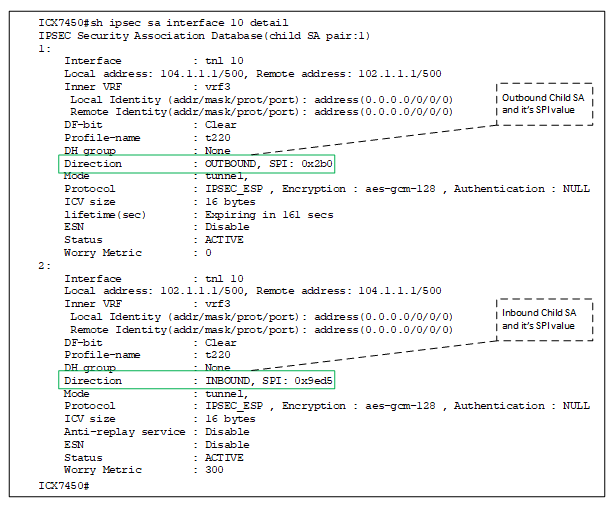

Show IPsec SA Interface Detail

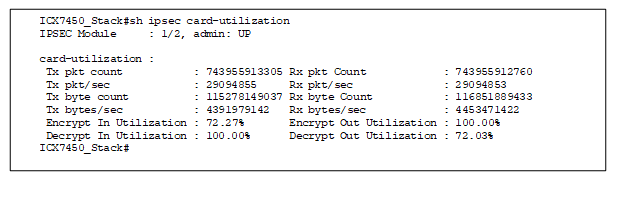

Show IPsec Card-Utilization

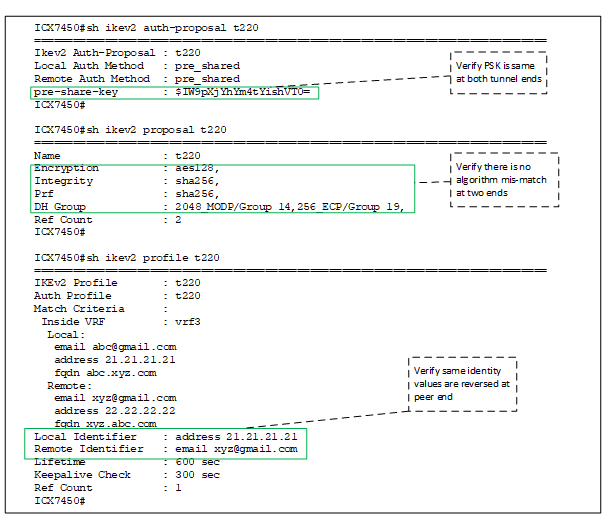

Checking IKEv2 Parameter Settings

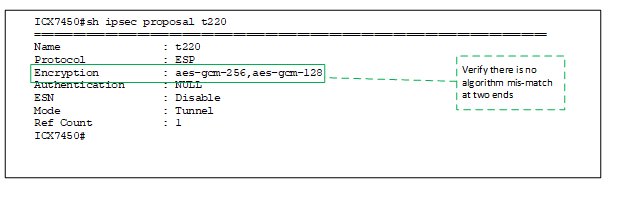

Show IPsec Proposal

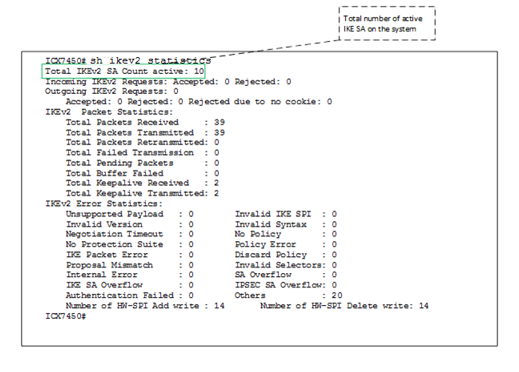

Show IKEv2 Statistics
