IPsec Module Failure and Replacement

Complete the following steps to recover from an IPsec module failure.

  1. Confirm the ICX7400-SERVICE-MOD module failure status (CFG) on the stack unit/device on which the module resides.

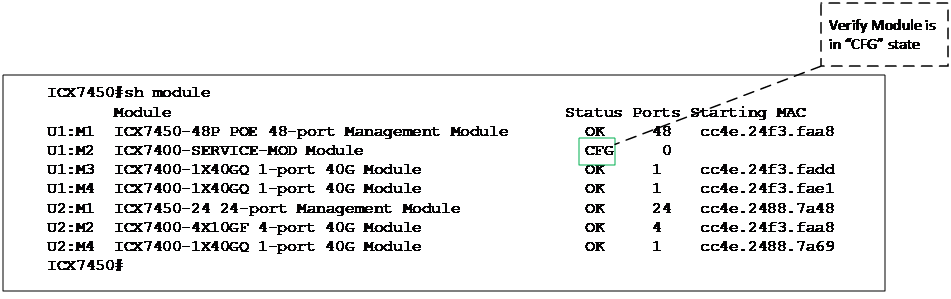

    Confirming Module Failure

  2. Power-off the stack unit/device of the failed ICX7400-SERVICE-MOD module.
  3. Insert the new ICX7400-SERVICE-MOD module.
  4. Power-on the stack unit/device and wait for it to come up.
  5. Verify the new ICX7400-SERVICE-MOD module status (OK) on the stack unit/device where it is inserted.

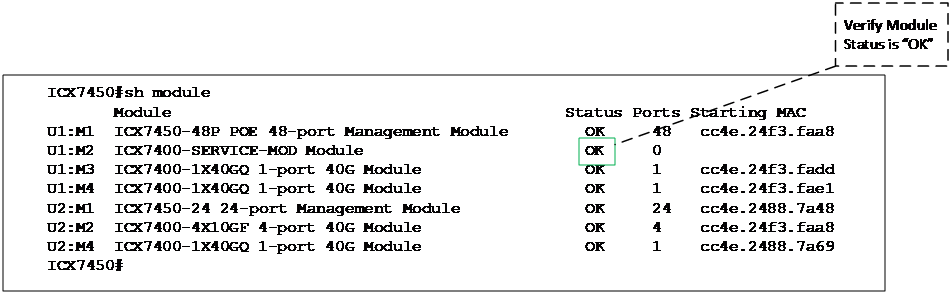

    Verifying Module Status
