Displaying the front panel for the RUCKUS ICX 7850 device

The RUCKUS ICX 7850 device has three models: ICX7850-48F, ICX7850-48FS and ICX7850-32Q.

To display the front panel, click Monitor on the left panel and select Front Panel.

The following figure shows the front panel of the RUCKUS ICX 7850-48F device.

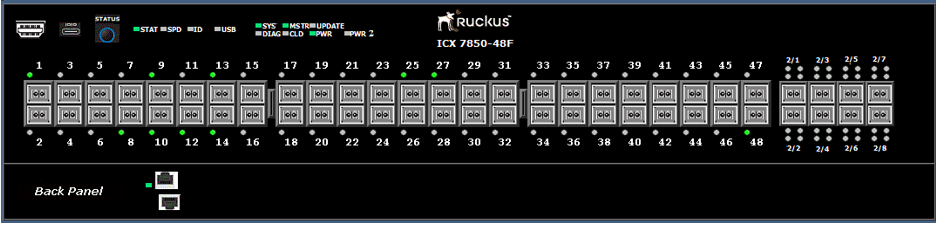

RUCKUS ICX 7850-48F device front panel

The following figure shows the front panel of the RUCKUS ICX 7850-48FS device.

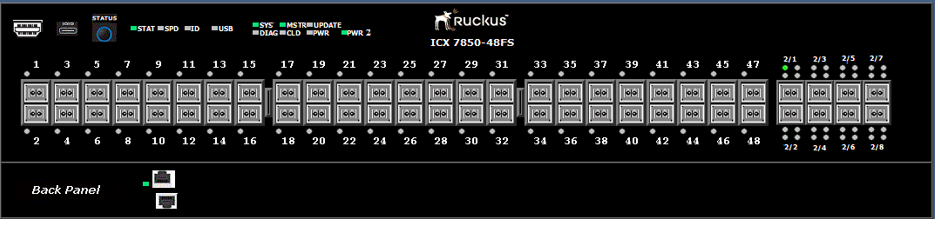

RUCKUS ICX 7850-48FS device front panel

The following figure shows the front panel of the RUCKUS ICX 7850-32Q device.

RUCKUS ICX 7850-32Q device front panel
