Moving the Switches between Groups

You can move the switch to any group or sub-group within the system tree hierarchy.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. From the system tree, select a Domain > Switch Group or Switch Group and select the Switch that you want to move.
  3. Click the Move tab.

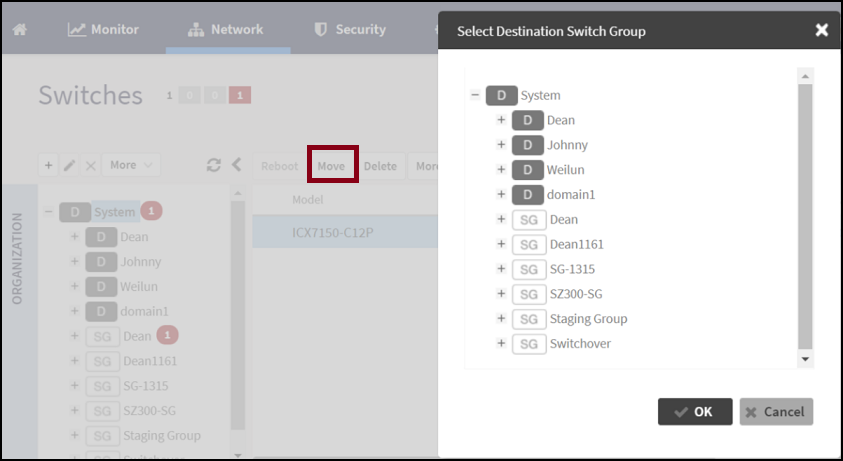

    Moving the switch

    The Select Destination Switch Group dialog box is displayed showing the system tree hierarchy.

  4. Select a Domain > Switch Group or Switch Group to which you want to move the selected switch.
  5. Click OK.
Parent topic: Approving and Registering switches
