Deleting the Firmware Upgrade Schedules
If you schedule a firmaware upgrade, and
if the firmware upgrade is not executed or is in progress then this feature allows
you to
cancel the firmware upgrade. However, it must be noted that if the switch is copying
or
downloading the firmware, the controller will not be able to cancel the process.
- On the menu, click to display the Switches window.
- From the system tree, select a or Switch Group and select the Switch. In the Details section, click .
- Click Yes to delete the firmware schedule.
- A Switch firmware schedule(s) deleted successfully message dialog box is displayed, click OK.

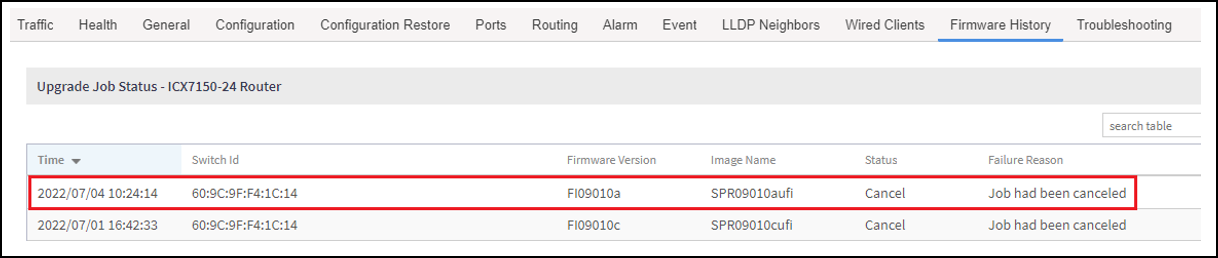

- From the system tree, select the Switch and in the Details section, select the Firmware History tab. In the Upgrade Job Status section confirm that the schedule is canceled.
%20Access%20Points%20and%20Switch%20Management%20Guide,%207.1.0_v3_GUID-27662C2D-2A18-49E9-B6DA-1E1B1F29F636/Viewing%20the%20Firmware%20History=GUID-FFA57D8A-7B8E-437F-BC42-F319BD2799B9=2=en-US=Low.png "Confirming the deletion")
