Creating a WLAN Configuration (WISPr)

To create a WLAN configuration:

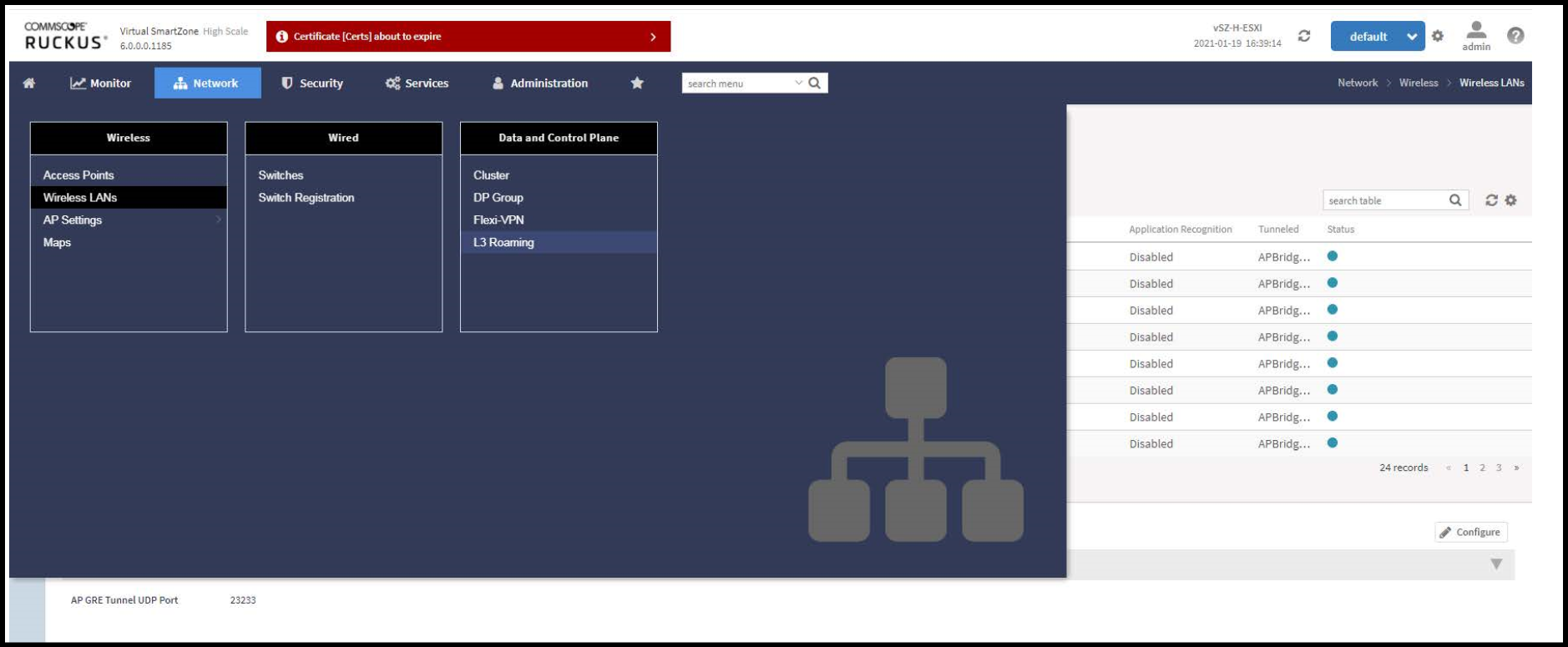

  1. In the Network > Wireless> Wireless LANs page, select the Zone where you want to create a WLAN.

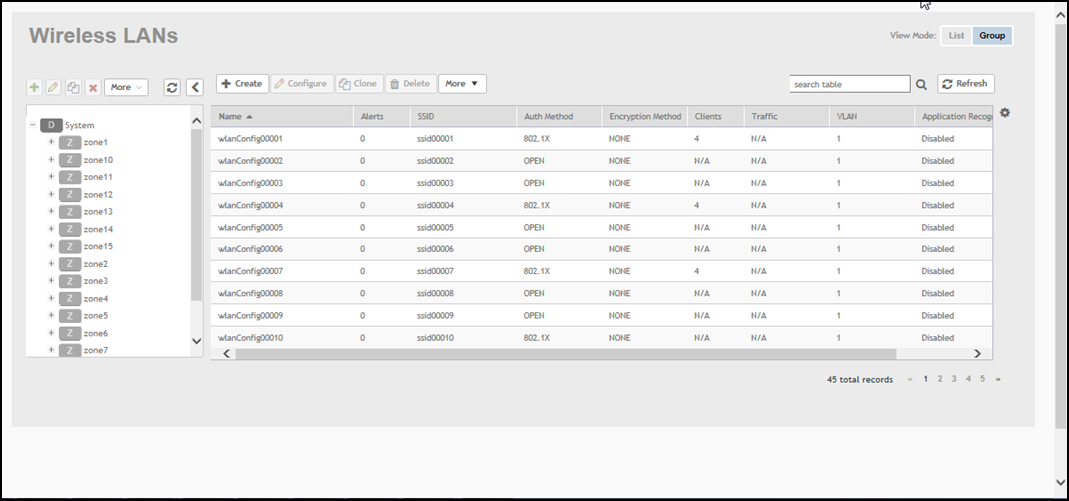

    Wireless LANs

    Wireless LANs

    Wireless LANs

  2. Click Create. The Create WLAN Configuration page is displayed.

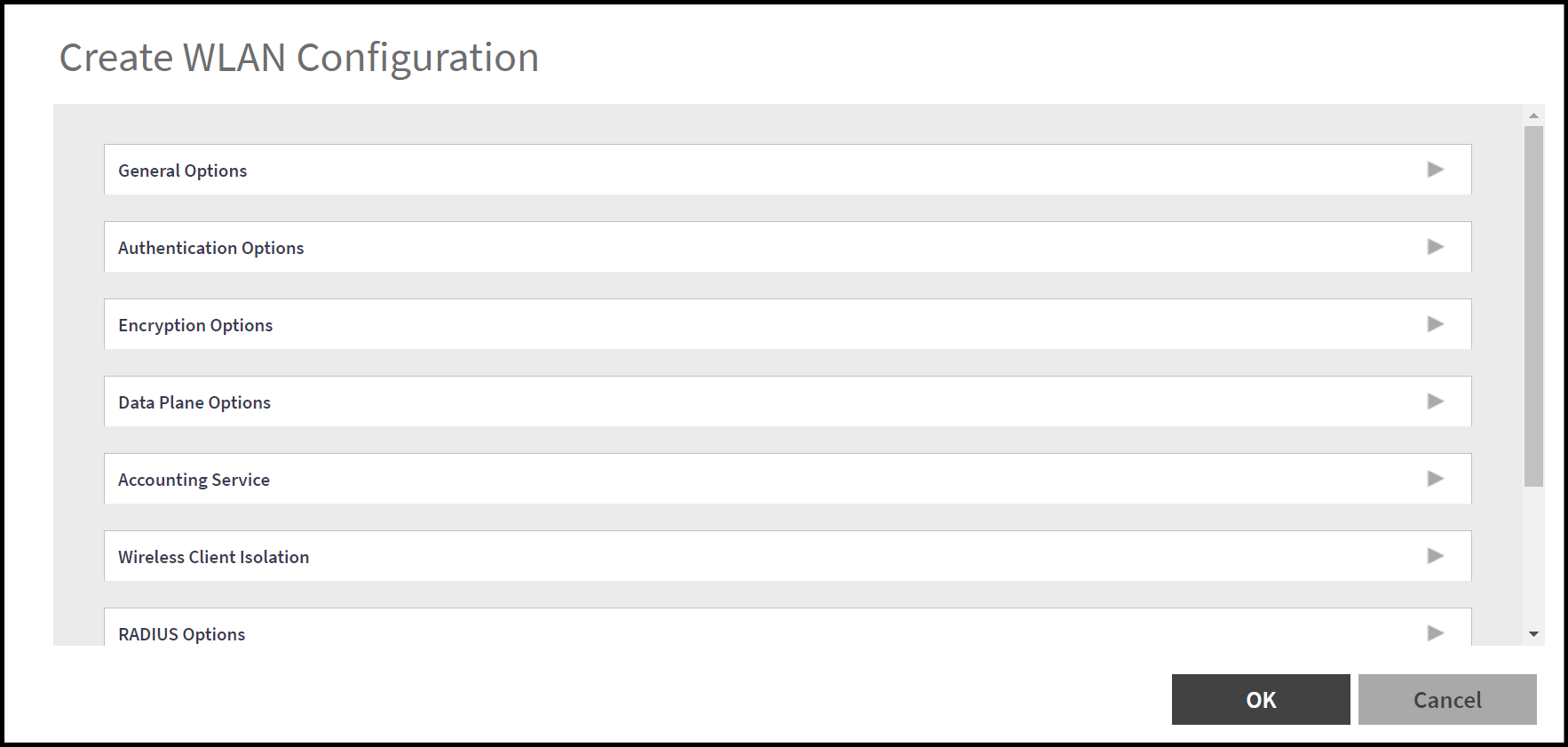

    Creating a WLAN Configuration

  3. Configure the WLAN as described in the following table.

    WLAN Configurations

    Field Description Your Action
    General Options
    Name Indicates the user-friendly administrative name for the WLAN. Enter a name.
    SSID Indicates the SSID for the WLAN. Enter the SSID
    Authentication Options
    Authentication Type Defines the type of authentication flow for the WLAN.
    Note: Authentication types such as WeChat are not supported by APs in IPv6 mode.
    		Hotspot (WISPr)Click this option if want to use a hotspot service (use this type for external captive portal workflows) or WISPr.
    Note: Hotspot (WISPr) applies to WLAN traffic that is tunneled and not tunneled.
    Authentication Options
    Method Specifies the authentication mechanism. Open (Default)—No authentication mechanism is applied to connections. If WPA or WPA2 encryption is used, this implies WPA-PSK authentication. Select the following option:
    Hotspot Portal (for WLAN Authentication Type: Hotspot (WISPr))
    Hotspot (WISPr) Portal Defines hotspot ehavior such as redirects, session timers, and location information among others. Select the hotspot portal profile that you want this WLAN to use.
    Bypass CNA Bypasses the Apple CNA feature on iOS and OS X devices that connect to this WLAN. Select the Enable check box.
    Authentication Service Indicates the authentication server that you want to use for this WLAN. Choose the option. Options include Local DB, Always Accept, and any AAA servers that you previously added. Select:
    • Use Controller as Proxy for the controller to proxy authentication messages to the AAA server
    • Use Realm-based profile to list contents from the realm-based profile.
      Attention: This option is available only for vSZH platforms.

    When the SSH tunnel between the AP and the controller is down, you can enable Backup Authentication Service to back up the AP's authentication services to a secondary device.

    Note: The customer portal must use AP WISPr ZD-Style API/Backup AAA to continue to provide the WISPr service for WISPr survivability.
    Accounting Service Indicates the RADIUS Accounting server that you want to use for this WLAN. Choose the option. You must have added a RADIUS Accounting server previously.

    Additionally, if you want the controller to proxy accounting messages to the AAA server, select the Use the Controller as Proxy check box.

    Select:

    • Use Controller as Proxy for the controller to proxy authentication messages to the AAA server
    • Use Realm-based profile to list contents form the realm-based profile. This option is available only for vSZH platforms.

    When the SSH tunnel between the AP and the controller is down, you can enable Backup Accounting Service to back up the AP's accounting services to a secondary device.

    Note: The customer portal must use AP WISPr ZD-Style API/Backup AAA to continue to provide the WISPr service for WISPr survivability.
    RADIUS Option
    NAS ID Defines the ID sent to the RADIUS server, which will identify the AP. Choose the option:
    • WLAN BSSID
    • AP MAC
    • User-defined
    NAS Request Timeout Indicates the duration after which an expected RADIUS response message is considered to have failed. Enter the timeout period (in seconds).
    Note: It is recommended to configure the same values for NAS Request Timeout, NAS Max Number of Retries, and NAS Reconnect Primary.
    NAS Max Number of Retries Indicates the maximum number of failed connection attempts after which the controller will fail over to the backup RADIUS server. Enter the maximum number of failed connection attempts.
    Note: It is recommended to configure the same values for NAS Request Timeout, NAS Max Number of Retries, and NAS Reconnect Primary.
    NAS Reconnect Primary

    Indicates the time interval after which the controller will recheck if the primary RADIUS server is available when the controller has failed over to the backup RADIUS server.

    		Enter the duration in minutes. Range: 1 through 60 minutes. The default interval is 5 minutes.
    Note: It is recommended to configure the same values for NAS Request Timeout, NAS Max Number of Retries, and NAS Reconnect Primary.
    Called Station ID Indicates the format for the called station ID, which is sent to the RADIUS server as an attribute, and can be used in policy decisions. Select a format:
    • WLAN BSSID
    • AP MAC
    • AP GROUP
    • NONE
    NAS IP Indicates the NAS IP address. Select the option:
    • Disabled
    • SZ Control IP
    • SZ Management IP
    • User-defined
    Single Session ID Accounting Allows the APs to maintain one accounting session for a client roaming between APs. If the client roams from one AP to another, the accounting session ID and stats will be carried while roaming from one AP to the other. If the feature is not enabled, the accounting session ID is re-generated and stats is also reset, essentially resetting the accounting session. Select the Enable check box.
  4. Click OK.
