Creating Non-Proxy Authentication AAA Server

A non-proxy AAA server is used when APs connect to the external AAA server directly.
  1. Go to Security > Authentication > Non-Proxy (AP Authenticator).
  2. Select a Zone from the system tree and click Create.
    TheCreate AAA Server page is displayed.

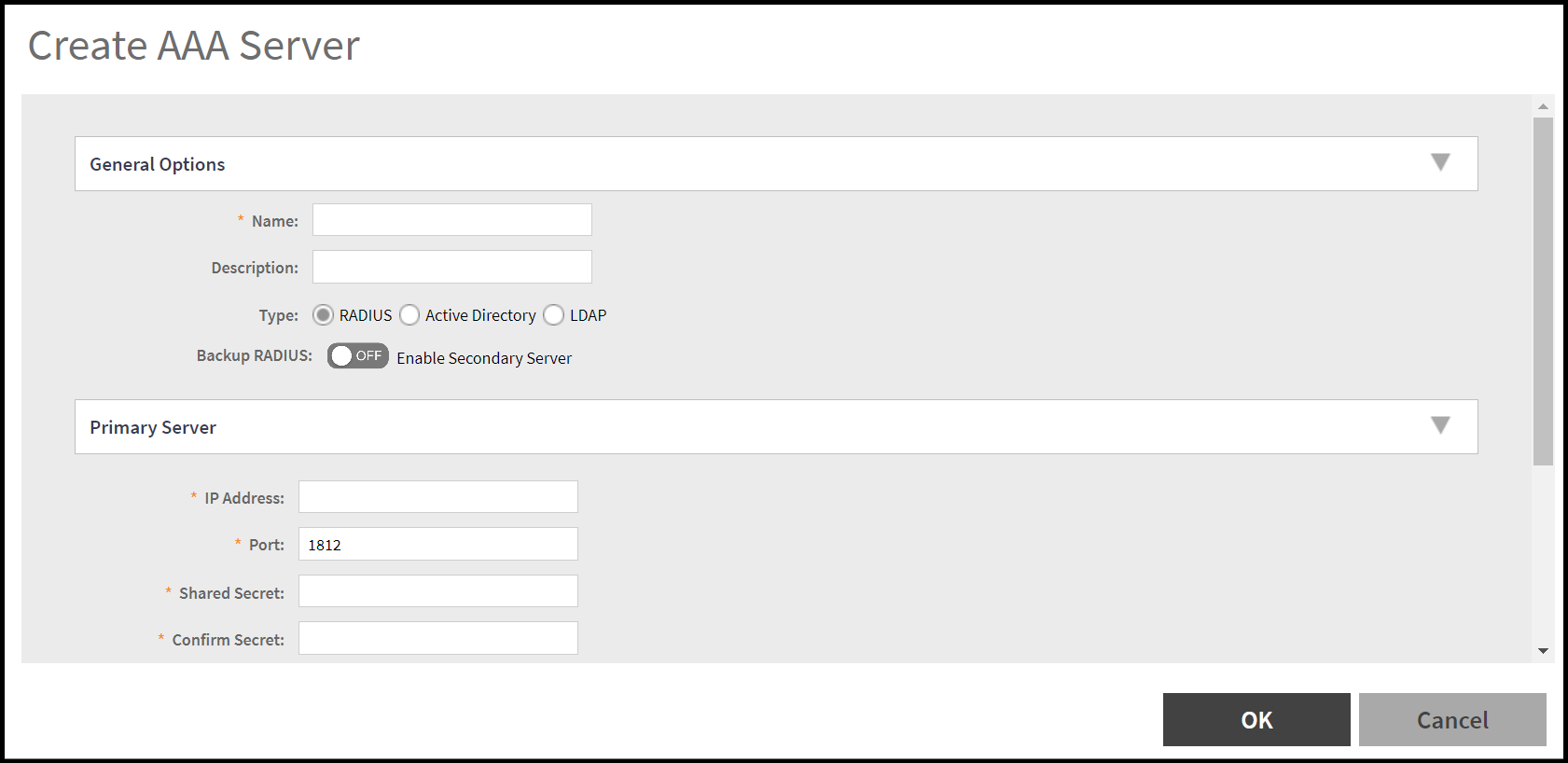

    Create AAA Server

  3. Configure the following options:
    • General Options
      • Name: Name the AAA server that you are creating.
      • Description: Short description of the AAA server.
      • Type: Select the type of AAA server that you are creating. Options include RADIUS, Active Directory and LDAP.
      • Backup RADIUS : If secondary RADIUS server exists on the network then only toggle the button to ON to enable the Secondary Server option.
    • Primary Server
      • If you select the type as RADIUS, configure the following options:
        • IP Address: The IP address of the AAA server. Both IPv4 and IPv6 addressing formats are supported.
        • Port: The port number of the AAA server. The default RADIUS server port number is 1812.
        • Shared Secret: The AAA shared secret.
        • Confirm Secret: Re-enter the shared secret to confirm.

        If you have enabled the secondary server for Backup RADIUS, you must provide similar information as in the primary server.

      • If you select the type as Active Directory, configure the following options:
        • IP Address: Enter the IPv4 address of the Active Directory server.
        • Port: Enter the port number of the Active Directory server. The default port number (389) must not be changed unless you have configured the Active Directory server to use a different port.
        • Windows Domain Name: Enter the Windows domain name assigned to the Active Directory server (for example, domain.ruckuswireless.com).
      • If you select the type as LDAP, configure the following options:
        • IP Address: Enter the IPv4 address of the LDAP server.
        • Port: Enter the port number of the LDAP server. The default port number is 389.
        • Base Domain Name: Enter the base domain name in LDAP format for all user accounts (for example, dc=ldap,dc=com).
        • Admin Domain Name: Enter the administrator domain name in LDAP format (for example, cn=Admin;dc=Your Domain,dc=com).
        • Admin Password: Enter the administrator password for the LDAP server.
        • Confirm Password: Re-enter the administrator password to confirm.
        • Key Attribute: Enter a key attribute to denote users (for example, default: uid)
        • Search Filter: Enter a search filter (for example, objectClass=Person).
  4. Under User Role Mapping,
    Note: While mapping group attribute value to a user role, avoid special characters, wild-card entries, or duplicate entries regardless of the order. Only the first-matched entry will be mapped to the user role.
    1. Click + Create. The Create User traffic Profile Mapping dialog box is displayed
    2. In the Group Attribute Value field, enter the value to be sent from AAA as part of an Access-Accept.
    3. Click OK
    4. Select a user role from the User Role list or click + to create a user role. For more information, refer to User Roles in User Management Guide.
  5. Click OK.
Note: You can also edit, clone and delete an AAA server by selecting the options Configure, Clone, and Delete, respectively, from the Non-Proxy (AP Authenticator) tab.

Note: Non-Proxy AAA Configuration. Creating a Proxy or Non-Proxy Authentication service

Click to play video in full screen mode.

In this section:

  1. Testing AAA Server (Auth)
    To ensure that the controller administrators will be able to authenticate successfully with the RADIUS server type that you selected, RUCKUS strongly recommends testing the AAA server after you set it up.
