Checking the SmartZone Cluster Status

1-vSZ# show cluster-state
   Current Management Service Status : In service
   Current Node Status : In service
   Cluster Status      : In service
   Cluster Operation   : None
   System Mode         : None

   Cluster Node Information
   ----------------------------------------------------------------
   No.   Name                     Role
   ----- ------------------------ -----------
   1     1-vSZ-C                  LEADER

Cluster State CLI Output Explained defines the output fields/values and explains how to interpret them, for example, cluster statuses such as In Service, Maintenance, or NetworkPartitionSuspected.

The following are additional commands to understand the status of the cluster and cluster nodes:

• The show cluster ip-list command displays the IP addresses of all nodes currently participating in the cluster:

  1-vSZ# show cluster ip-list​

  Cluster Node IPs: 101.91.18.52, 101.91.18.15

• The show cluster name command reveals the configured name of the cluster, which is useful for identification and documentation in multi-cluster environments:

  1-vSZ# show cluster name​

  Cluster Name: 1-vSZ

• The show version command returns detailed versioning information for the controller, control plane, data plane, and AP firmware, aiding in compatibility checks and upgrade planning:

  SZ-01# show version​

     Model                           : SZ104​

     Serial #                        : 951526000066​

     SZ Version                      : 6.1.0.0.935​

     Control Plane Software Version  : 6.1.0.0.683​

     Data Plane Software Version     : 6.1.0.0.601​

     AP Firmware Version             : 5.2.2.0.301, 5.2.2.0.1106, 6.0.0.0.1594, 6.0.0.0.2002, 6.1.0.0.1595

• The show control-plane command lists all control plane nodes in the cluster along with their roles, IP addresses, and uptime, providing insight into the cluster’s control infrastructure and node responsibilities:

  1-vSZ# show control-plane​

     No.   Name           CP MAC Address      Model     Serial Number                 Description​

  ----- -------------- ------------------- --------- ----------------------------- -------------------​

     1     1-vSZ-2-C      52:54:00:BF:B1:37   vSZ-H     987VF2LUDA4T2NTA3VUFD7P75MAA  1-vSZ-2-6.0-Beta​

     2     1-vSZ-C        52:54:00:FC:52:79   vSZ-H     98W7HG751SD59A37457SWTSC971E  1-vSZ​

  ​

  ​

  Management IP     Cluster IP        Control IP        Cluster Role   Uptime​

  ----------------- ----------------- ----------------- -------------- --------------​

  101.91.18.60       101.91.18.52       101.91.18.62       Follower       19d 10h 10m​

  101.91.18.15       101.91.18.15       101.91.18.15       Leader         19d 10h 21m

• The show running-config interface command displays the current interface configuration, including IP settings, DNS servers, and user-defined interfaces, helping verify network setup:

  SZ-01# show running-config interface​

  Interface Mode : Bridge All Ports​

  ​

  Management/AP Tunnel Traffic​

  ----------------------------------------------------------------​

  IP Mode : Static​

  IP Address : 192.168.1.31​

  Subnet Mask : 255.255.255.0​

  Gateway : 192.168.1.1​

  ​

  ​

  DNS Servers​

  ----------------------------------------------------------------​

  No. Priority Server​

  ----- --------- -----------------------------​

  1 1 8.8.8.8​

  ​

  ​

  User Defined Interfaces​

  ----------------------------------------------------------------​

  ​

• The show interface mgmt-or-ap-tunnel command provides detailed information about the management or AP tunnel interface, including IP mode, address, subnet mask, and gateway:

  SZ-01# show interface mgmt-or-ap-tunnel​

  Interface : Management/AP Tunnel Traffic​

  IP Mode : Static​

  IP Address : 192.168.1.31​

  Subnet Mask : 255.255.255.0​

  Gateway : 192.168.1.1

• The show cpuinfo command reveals processor-level details such as core count, model name, and CPU usage statistics, useful for performance diagnostics:

  1-vSZ# show cpuinfo​

  processor : 0​

  model name : Intel Core Processor (Broadwell, IBRS)​

  processor : 1​

  model name : Intel Core Processor (Broadwell, IBRS)​

  processor : 2​

  model name : Intel Core Processor (Broadwell, IBRS)​

  processor : 3​

  model name : Intel Core Processor (Broadwell, IBRS)​

  %Cpu(s): 79.0 us, 17.3 sy, 0.0 ni, 1.2 id, 0.0 wa, 0.0 hi, 1.2 si, 1.2 st​

• The show diskinfo command reports total, used, and free disk space, helping assess storage capacity and utilization:

  1-vSZ# show diskinfo​

  Total Disk: 225.5 GB​

  Used Disk: 58.1 GB​

  Free Disk: 167.3 GB​

• The show meminfo command displays memory usage statistics, including total, used, and free memory, aiding in system health monitoring:

  1-vSZ# show meminfo​

  Total Memory: 15.3 GB​

  Used Memory: 12.9 GB​

  Free Memory: 2.4 GB

• The show system-capacity command provides an overview of system resource limits and current usage, such as AP and switch capacity:

  1-vSZ# show system-capacity​

  System Capacity of Cluster:​

  Total Capacity : 500 APs ( 100 Switches )​

  Connected AP : 17 APs​

  Connected Switch: 1 Switches​

  Remaining AP : 478 APs​

  Remaining Switch: 95 Switches

Crash Mode

The cluster enters Crash mode when the system meets an unexpected, irrecoverable error during a fresh install or a reboot process flow. Recovery requires that you reset the system to factory settings.

The system enters Crash mode in any one of the following conditions:

1. System reboot with an environment inconsistency:
   1. Model
   2. Port group (applicable to only hardware model SZ144)
   3. Firmware Version
2. Fresh install fail.
3. Join cluster fail.

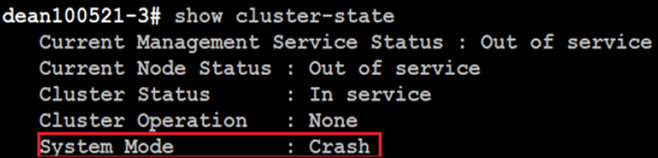

Crash Mode

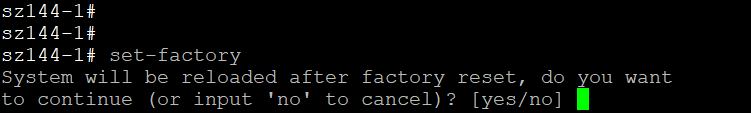

To reset the system to factory settings in case of Crash mode, use the set-factory command.

Setting the Controller to Factory Defaults

Suspend Mode

The cluster enters Suspend mode if there is an environment error during the reboot process flow. The Configurer sets the system mode to Suspend and stops all applications. As this is a temporary failure, recovery requires that you reboot the system.

The system enters Suspend mode in any one of the following conditions:

1. Platform applications cannot be launched successfully.
2. Failed on membership authentication in cluster.

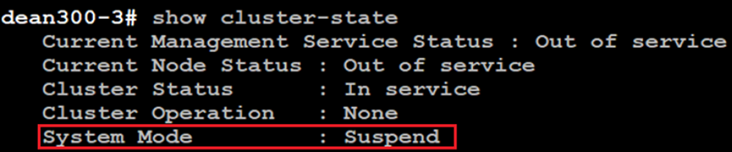

Suspend Mode
