Port-side view

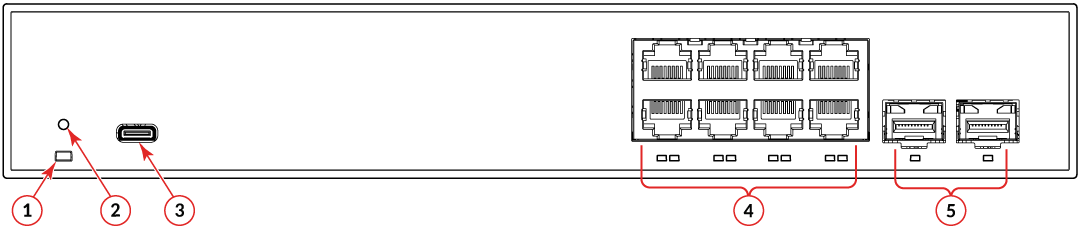

Port-side View of ICX8100-C08PF and ICX8100-C08PF-V

  1. PWR LED
  2. RESET button
  3. Type-C USB console port
  4. Slot 1: 10/100/1000 Mbps RJ-45 ports
  5. Slot 2: 1 Gbps SFP uplink ports

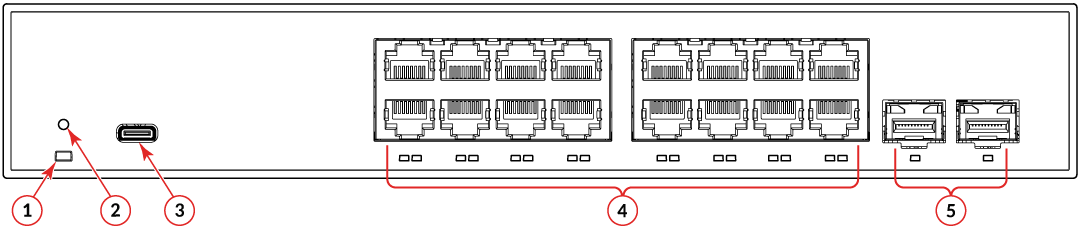

Port-side View of ICX8100-C16P

  1. PWR LED
  2. RESET button
  3. Type-C USB console port
  4. Slot 1: 10/100/1000 Mbps RJ-45 ports
  5. Slot 2: 1 Gbps SFP uplink ports

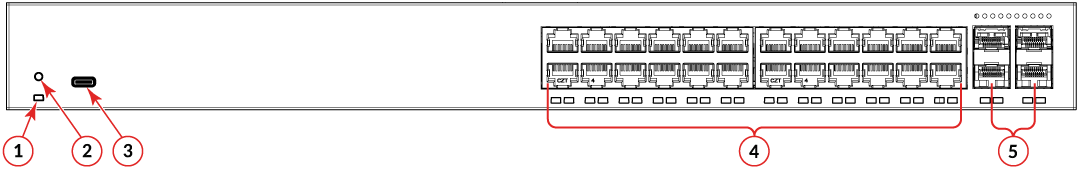

Port-side View of ICX8100-24

  1. PWR LED
  2. RESET button
  3. Type-C USB console port
  4. Slot 1: 10/100/1000 Mbps RJ-45 ports
  5. Slot 2: 1 Gbps SFP uplink ports

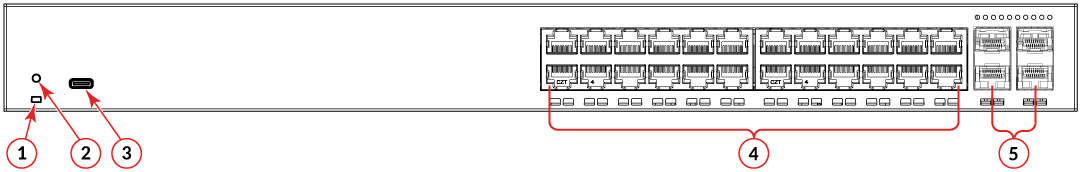

Port-side View of ICX8100-24P and ICX8100-24P-V

  1. PWR LED
  2. RESET button
  3. Type-C USB console port
  4. Slot 1: 10/100/1000 Mbps RJ-45 PoE ports
  5. Slot 2: 1 Gbps SFP uplink ports

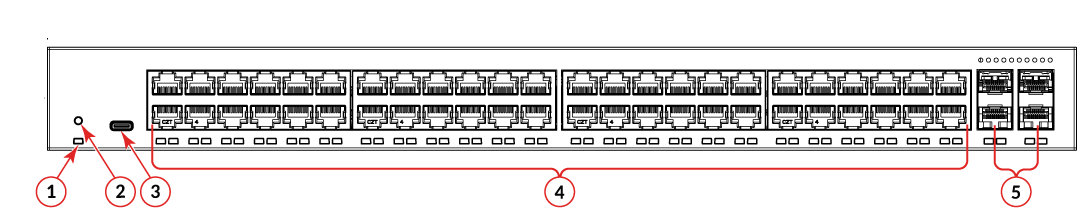

Port-side View of ICX8100-48

  1. PWR LED
  2. RESET button
  3. Type-C USB console port
  4. Slot 1: 10/100/1000 Mbps RJ-45 ports
  5. Slot 2: 1 Gbps SFP uplink ports

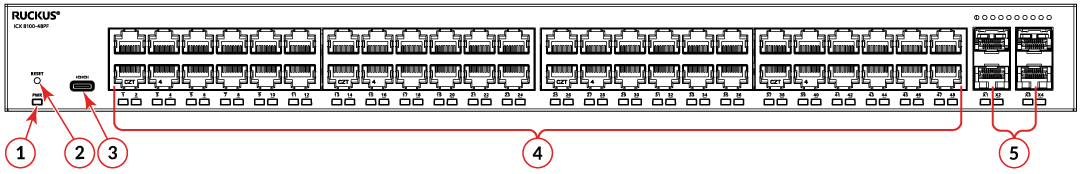

Port-side View of ICX8100-48P

  1. PWR LED
  2. RESET button
  3. Type-C USB console port
  4. Slot 1: 10/100/1000 Mbps RJ-45 PoE ports
  5. Slot 2: 1 Gbps SFP uplink ports

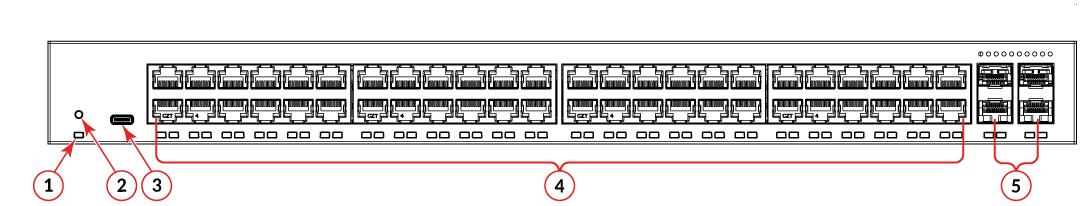

Port-side View of ICX8100-48PF and ICX8100-48PF-V

  1. PWR LED
  2. RESET button
  3. Type-C USB console port
  4. Slot 1: 10/100/1000 Mbps RJ-45 PoE ports
  5. Slot 2: 1 Gbps SFP uplink ports
