Mounting on a Wall Using the Wall-Mount Brackets

Note: You need a #2 Phillips screwdriver, a hammer, and a drill for wall mount installation.
Note: Mount the devices that have fans so that there is enough space for ventilation on the air-intake and air-exhaust sides to maintain the ambient operating temperature.
RUCKUS recommends that you install the 24P and 48P models with the port-side down to maintain the ambient temperature.

Danger: This equipment is suitable for mounting on concrete or other noncombustible surfaces only.

Note: The hardware device illustrated in this procedure is only for reference and may not depict the actual device that you are installing.

Complete the following steps to mount the device to a wall.

  1. Using a Phillips screwdriver, attach the wall-mount brackets to the sides of the device using two #6-32 sink-head screws on each side.
    Note: The ICX 8100-C08PF may be attached directly to the wall using M4L8 pan-head screws slid into the keyholes on the back side of the device or it may be attached to the ceiling using brackets attached with M4L8 pan-head screws.

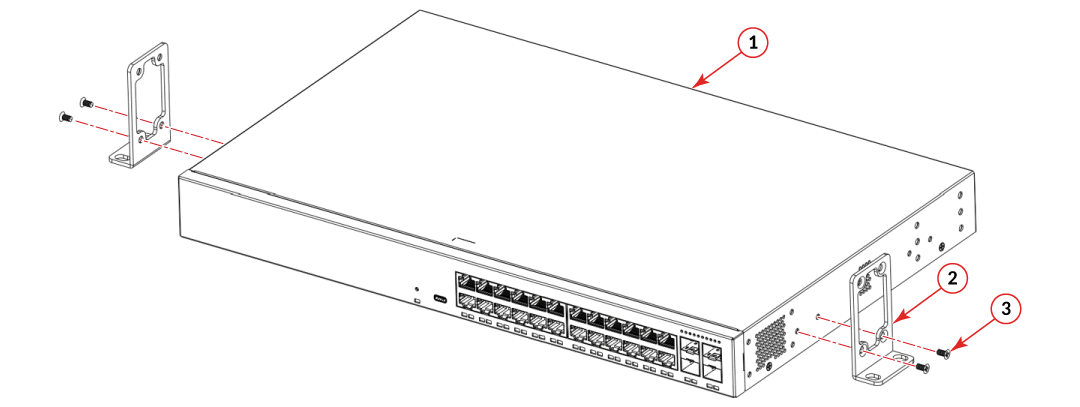

    Attaching the Wall-Mount Brackets to a 24-port Device

    1. Top of the device
    2. Front brackets
    3. Screws, 6-32 x 5/16-in., flathead Phillips

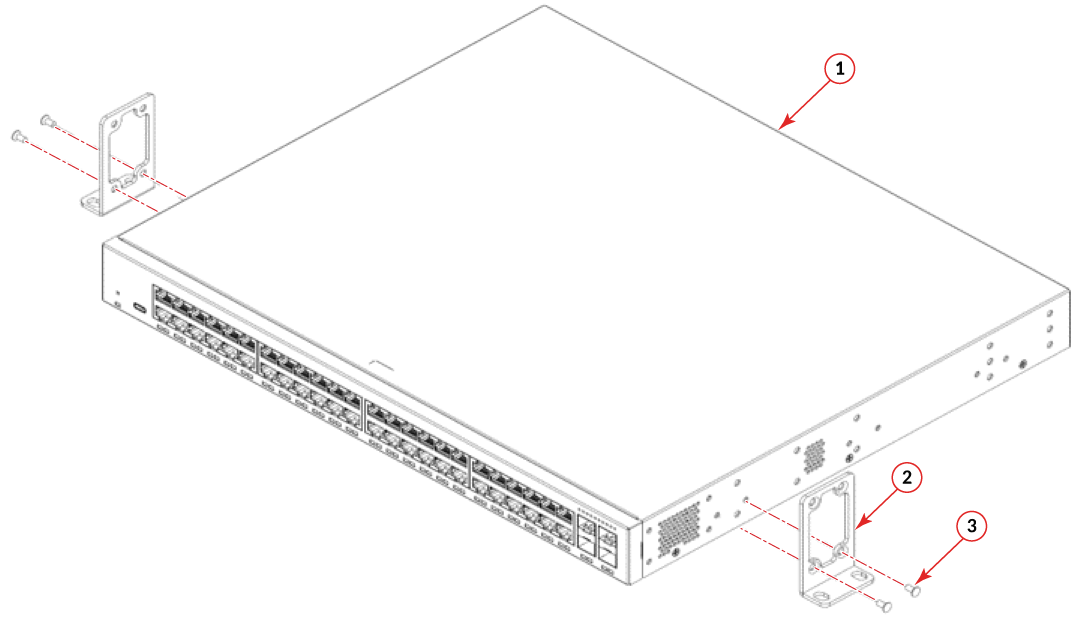

    Attaching the Wall-Mount Brackets to a 48-port Device

    1. Top of the device
    2. Front brackets
    3. Screws, 6-32 x 5/16-in., flathead Phillips
  2. Drill two holes on the wall where you want to mount the device.
  3. Hammer two wall-mount anchors into the holes on the wall.
  4. Use the two wall-mount screws to fasten the device to the wall-mount anchors.

    Wall-Mounting a 24-port Device

    1. Drilled holes
    2. Wall-mount anchors
    3. Wall-mount screws

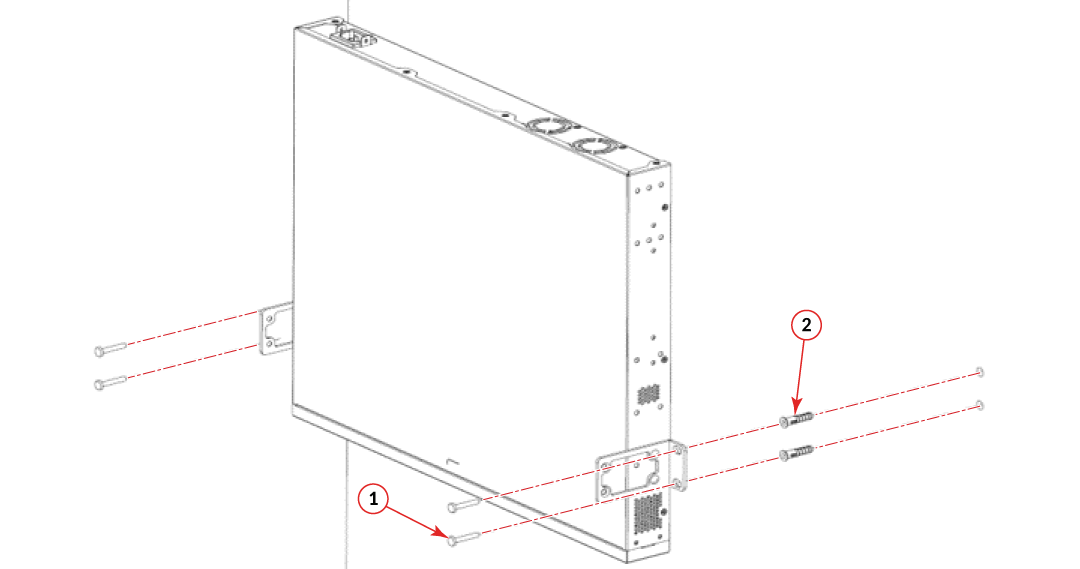

    Wall-Mounting a 48-port Device Port-side Down

    1. Wall anchors
    2. M4L8 Pan-head screws

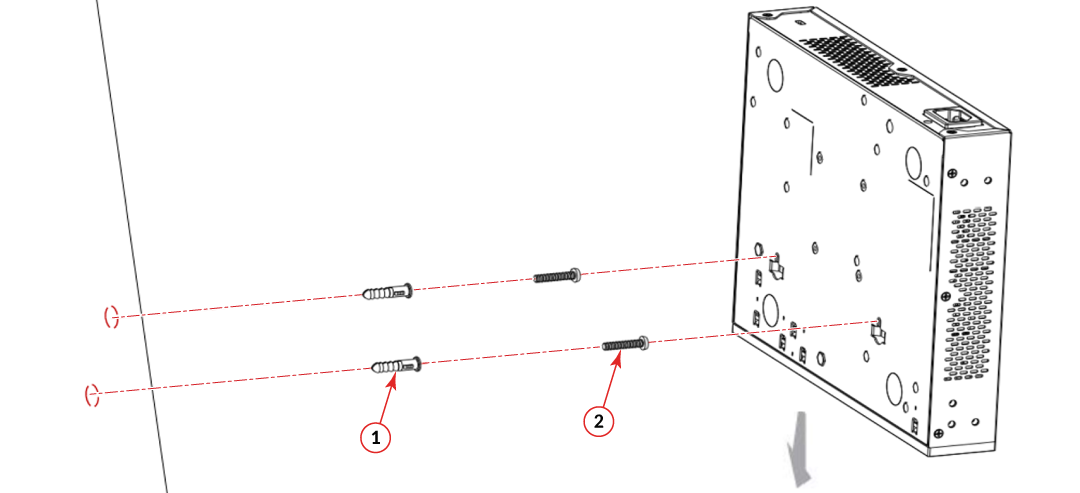

    Wall-Mounting an ICX 8100-C08PF Device Port-side Down

    1. Wall anchors
    2. M4L8 Pan-head screws
    1. Using a Phillips screwdriver, attach the wall-mount kit to the back of the device using four M3 screws.
    2. Drill two holes on the wall where you want to mount the device.
    3. Hammer two wall-mount anchors into the holes on the wall
  5. Hammer two wall-mount anchors into the holes on the wall.
  6. Use the two wall-mount screws to fasten the device to the wall-mount anchors.
Parent topic: Mounting the Device
