Changing the AP Firmware Version of the Zone

Changing the AP's Firmware Version

Complete the following steps to change the AP firmware version of the zone.

1. Go to Network> Access Points and locate a zone for which you want to upgrade the AP firmware version.
   Note: To upgrade multiple zones, click the Zone view mode and select the zones by holding down the Ctrl key and clicking each of the zones.
2. Click More and select Change AP Firmware. The Change AP Firmware dialog box displays the current AP firmware version.

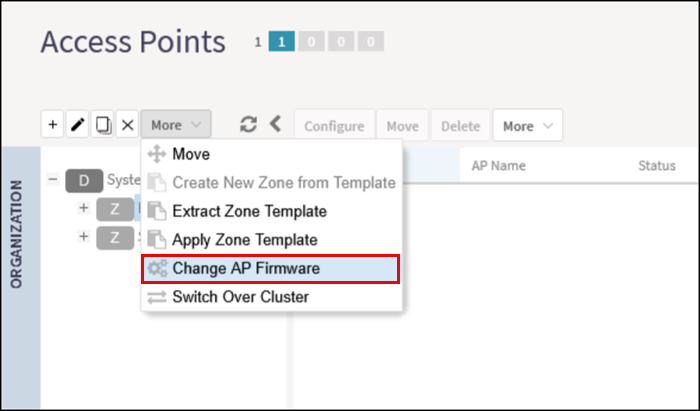

   Changing the AP Firmware


3. Select the firmware version you need. If you upgrade to a new firmware version, a backup configuration file will be created. You can use this backup file to downgrade to the original firmware version.

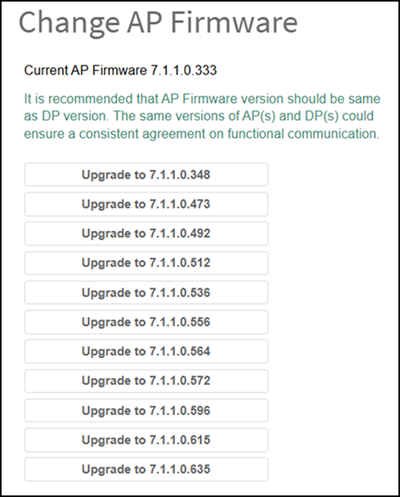

   Selecting the Firmware Version


   Note: If the multiple zones do not have the same supported firmware version, the dialog box displays the following message:These Zones do not have same supported AP firmware available for upgrade/downgrade.
4. Click Yes, and a confirmation message is displayed stating that the firmware version was updated successfully.
   Note: If any zone fails to upgrade, a dialog box displays to download an error CSV list.
5. Click OK. You have completed changing the AP firmware version of the zone.
