Viewing Firmware History of the Switch
The Firmware History allows you to
view the detailed status and results of the firmware updates for a switch, as well
as view
the history of past firmware upgrades on the switch.
You must upgrade the switch firmware as described in Scheduling a Firmware Upgrade for Selected Switches
- On the menu, click to display the Switches window.
- From the system tree, select a or Switch Group and select the Switch.

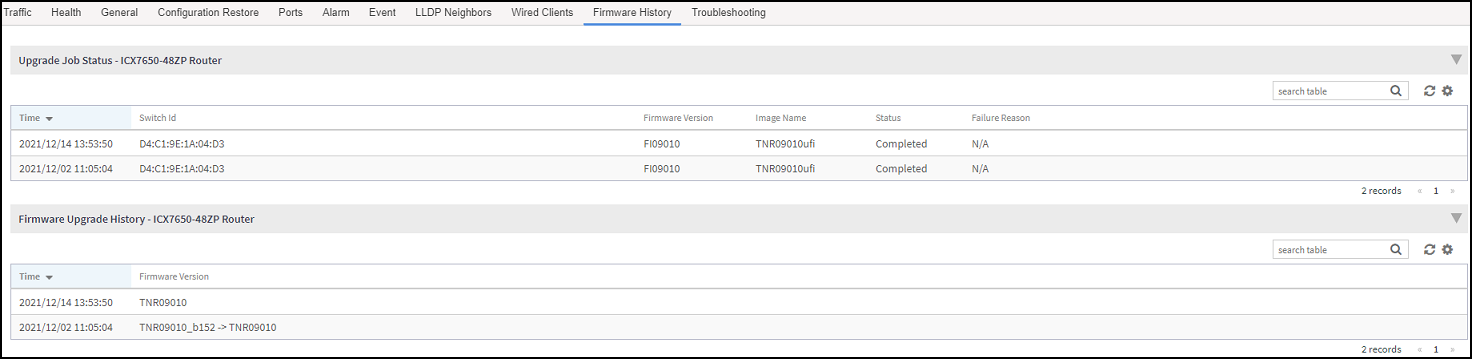

- In the Details pane, click the Firmware History tab.
- In the Upgrade Job Status section, you can verify the upgrade status including the time, switch ID, firmware version, image name, status and any failure reasons (if applicable).
- In the Firmware Upgrade History section, you can see the times of previous upgrades and the firmware versions used.
