SOP A
This section provides information on

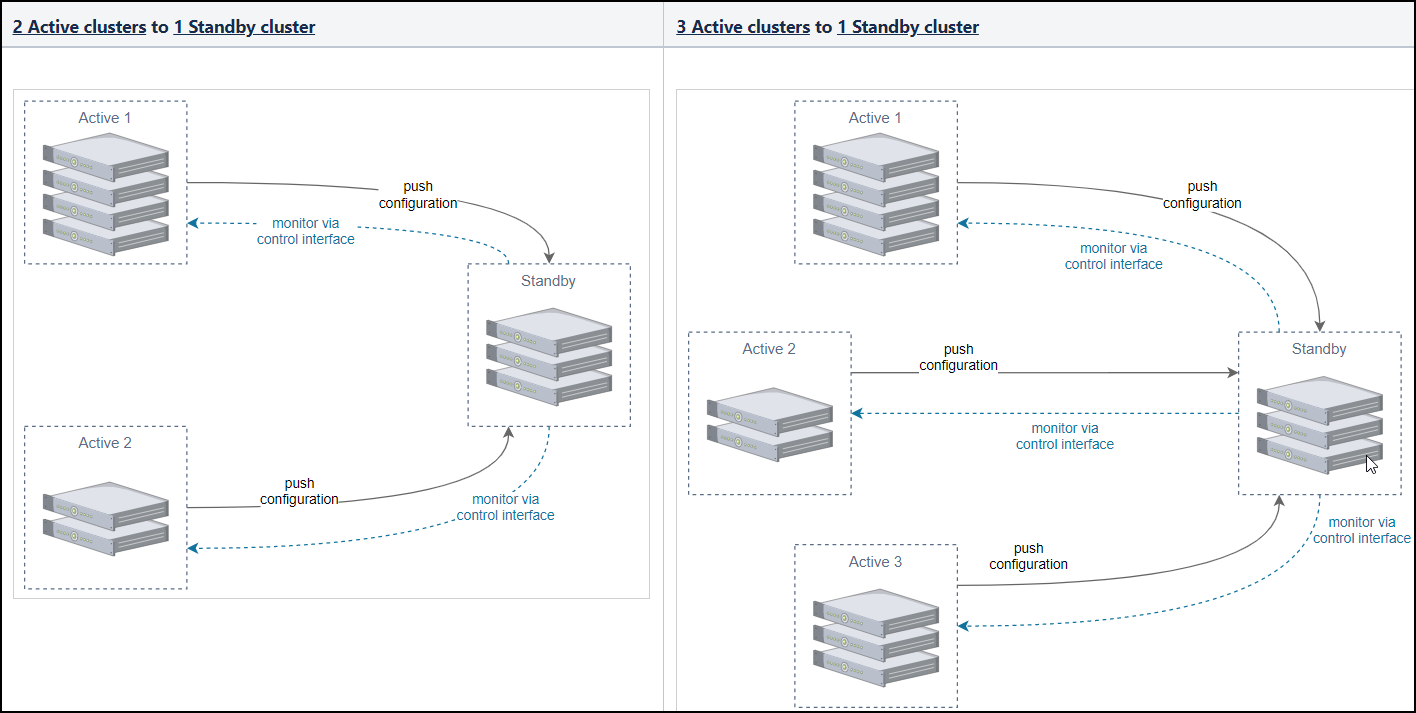

upgrade paths, preconditions, the applicable topology, and the upgrade flow for SOP
A.
The standby cluster must have the following license in order to be upgraded:
%20SmartZone%20Upgrade%20Guide,%207.1.0_v3_GUID-92CF20E8-CF59-417C-9524-02300EEC2A09/GUID-D2605B4F-1C9C-4D8A-AF55-6F8443B1C6C8-low=GUID-BC136494-7EC0-4E1C-AF19-1232AE4D6318=1=en-US=Low.png)

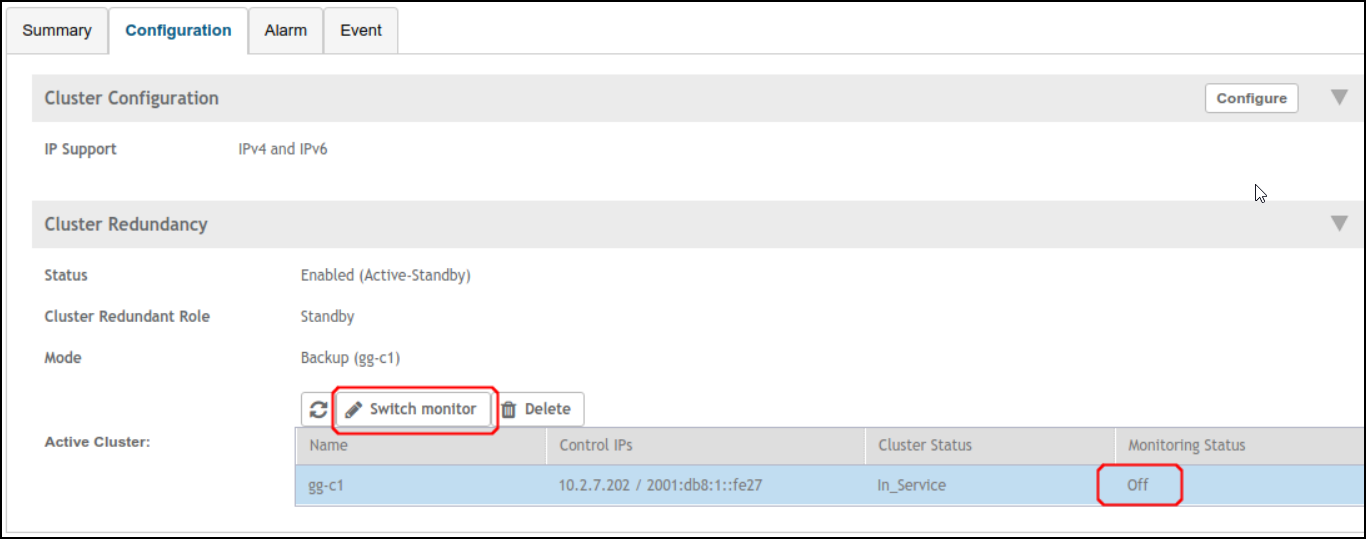

- Turn off the monitoring status of each active cluster from the standby cluster. In the standby cluster interface, go to .
- Select the cluster root, and click the Configuration tab.
- Upgrade the Active 1 cluster and make sure it is successfully upgraded.
- From the active cluster, go to and check the details of event code 814. Refer Performing the Upgrade.
- Repeat and to upgrade the Active 2 cluster and the Active 3 cluster.
- Upgrade the standby cluster after all the active clusters are successfully upgraded.
- Click Sync Now in each active cluster after all the active and standby clusters are successfully upgraded.
- From the active cluster, go to and check the details of event code 814. Refer Performing the Upgrade.
- Turn on the monitoring status of each active cluster from the standby cluster after the standby cluster is successfully upgraded.
- If the new SZ version is 5.2.x (including 5.2), and the standby cluster monitors only one active cluster, the standby cluster will automatically switch to Backup mode regardless of the number of nodes of the Active cluster. After cluster redundancy is enabled, the standby cluster will take some time to restore the configuration of the latest active cluster.
