Scheduling a Firmware Upgrade for Selected Switches
Scheduling Firmware Upgrade

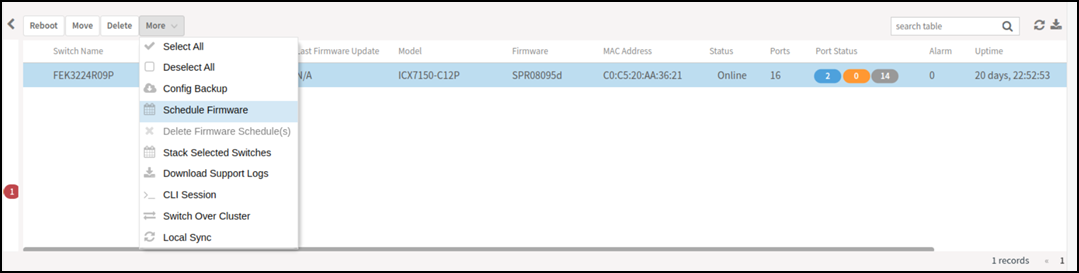

- From the main menu, click
.The Switches page is displayed.
- Select a or specific Switch Group and select the Switch that you want to upgrade.

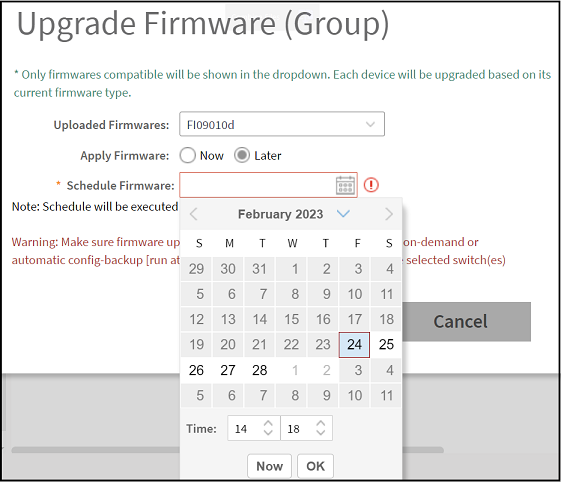

- Click .The Upgrade Firmware dialog box is displayed.
- Complete the following fields:
- Uploaded Firmwares: Select the firmware version that you want the switch to be upgraded to.
- Firmware Type: Select type of firmware you want to upload to the switch. Options include Switch and Router images.
- Apply Firmware: Set when you want to apply the new firmware version to the switch. You can select Now or Later to schedule your upgrade. If you select Later, then you must select the date and time from the Schedule Firmware field.

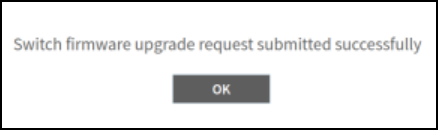

- Click OK.
-

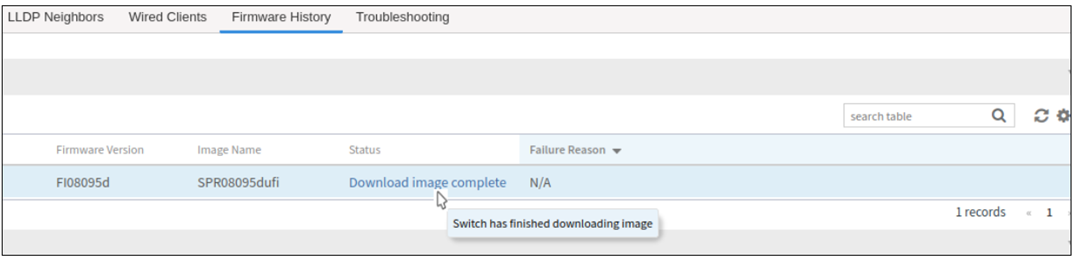

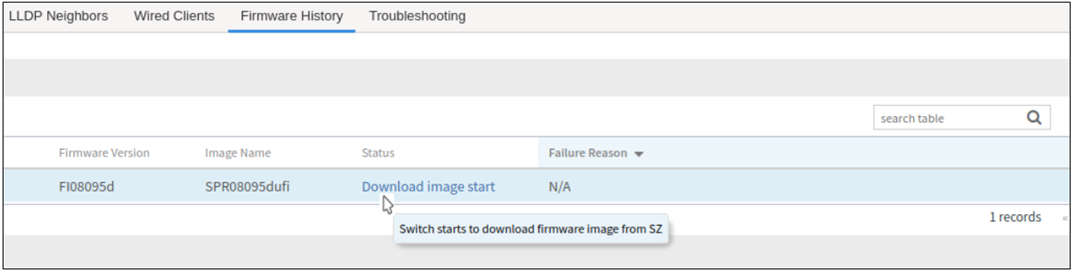

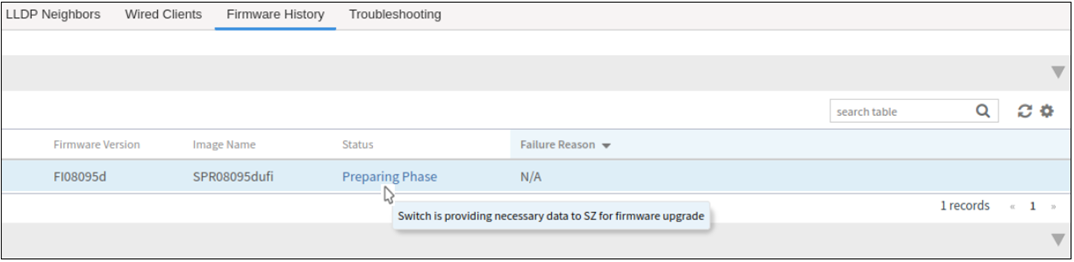

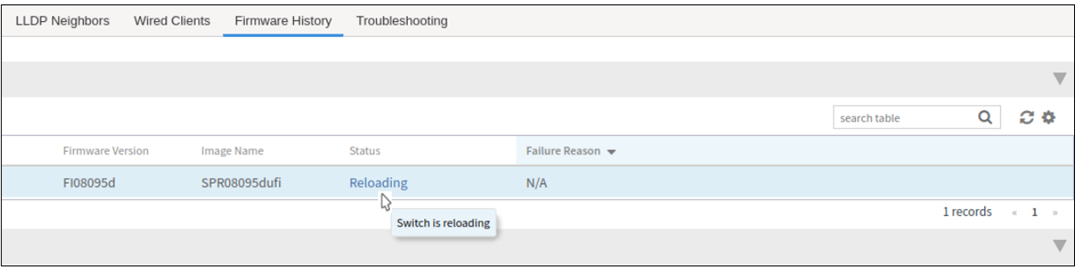

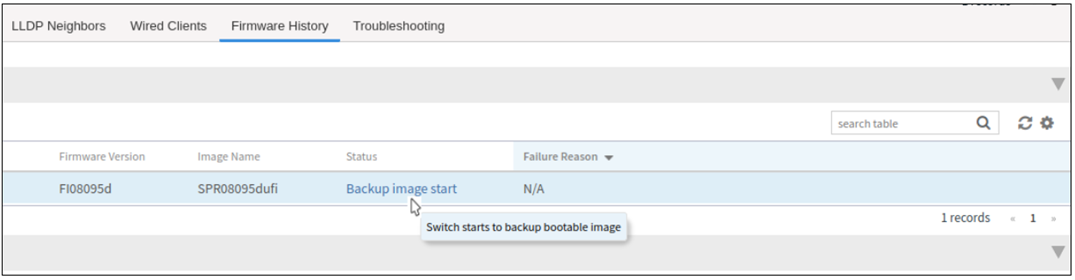

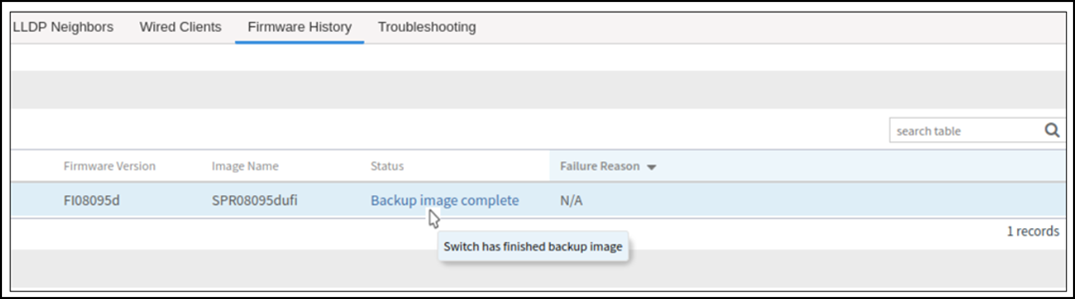

7.0 Beta FeatureTo monitor the firmware upgrade progress, select the target switch and click the Firmware History tab. Hover your cursor over any message in the Status field for a tooltip providing additional information regarding that stage of the upgrade process.
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Selecting%20Scheduling%20Firmware=GUID-EBA5F3B2-9B6D-4E87-B7C4-6DFE64702BD3=1=en-US=Low.png "Selecting Scheduling Firmware")
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/switch-firmware=GUID-6D6CB8B4-D9A9-461F-AAC7-8F4A86A8F1F0=2=en-US=Low.png)
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Switch%20Upgrade%20Success=GUID-E56D8DC1-C68D-4E1C-91D0-BCFE78F12856=1=en-US=Low.png "Switch Upgrade Request Success")
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Prepairing%20phase%20with%20tooltip=GUID-C3AC1D8D-4277-46BC-B630-D5CC7C2D8B7C=1=en-US=Low.png "Preparing phase with tooltip")
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Backup%20image%20start%20tooltip=GUID-E11B83B1-8F7B-4C2E-BBD3-58DD8E9A5540=1=en-US=Low.png "Backup image start tooltip")
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Backup%20image%20complete%20-%20tooltip=GUID-3E532691-5352-4F5B-BB42-6C2D8D4728E7=1=en-US=Low.png "Backup Image Complete with tooltip")
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Download%20Image%20Start%20-%20tooltip=GUID-E63A7D91-84CE-47EC-9DE9-14F368FD87DE=1=en-US=Low.png "Download image start tooltip")
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Download%20image%20complete%20tooltip=GUID-C3D699E9-E551-4329-B62F-64AD6BED1431=1=en-US=Low.png "Download image complete tooltip")
%20SmartZone%20Upgrade%20Guide,%207.0.0_v5_GUID-C827D9FC-EF19-4BAD-95C4-C08E672C58AA/Reloading%20tooltip=GUID-D29FEA11-70A7-4AE5-AB8D-931F580138DE=1=en-US=Low.png "Reloading phase tooltip")
