Auto-deployment of Layer 3 image and monitoring

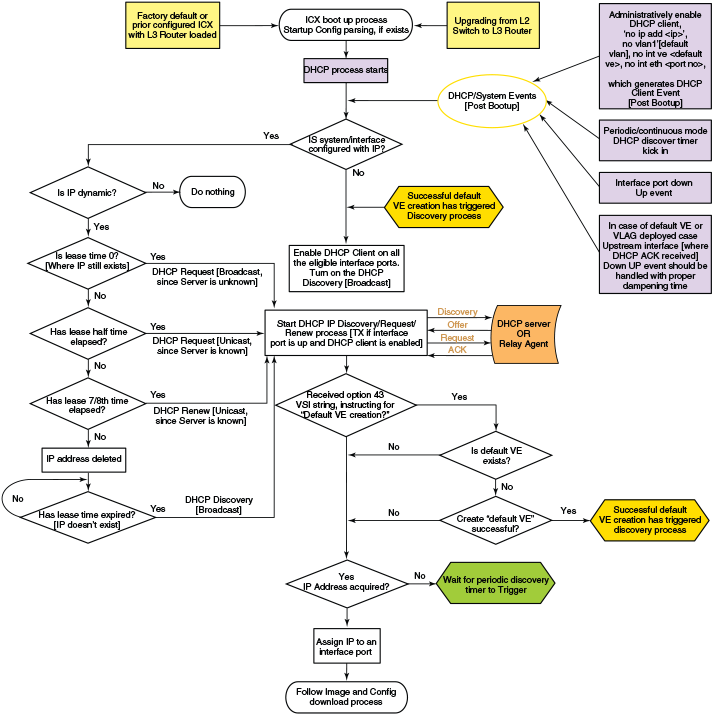

The following flowchart illustrates DHCP auto-deployment with a Layer 3 router image.
