Creating an AP Group

Creating an AP group means creating a configuration profile that defines channels, radio settings, Ethernet ports, network segmentation groups, and other configurable settings for all members of the group or for all APs of a specific model in the group.

.

Follow these steps to create an AP group.

  1. On the main menu, click Network > Access Point.

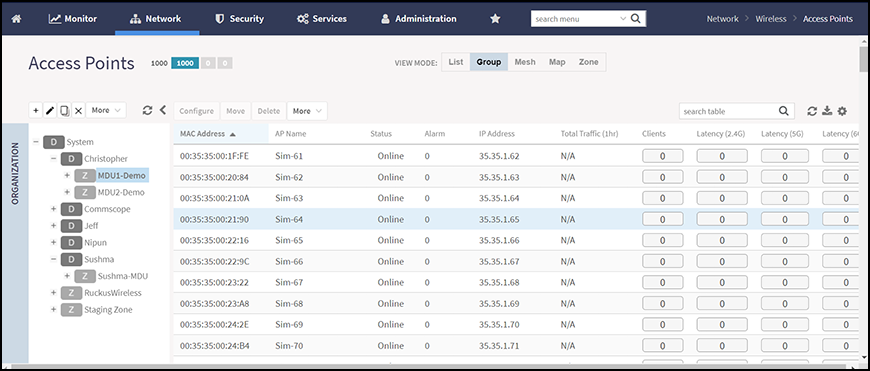

    The Access Point page is displayed.

    Access Point

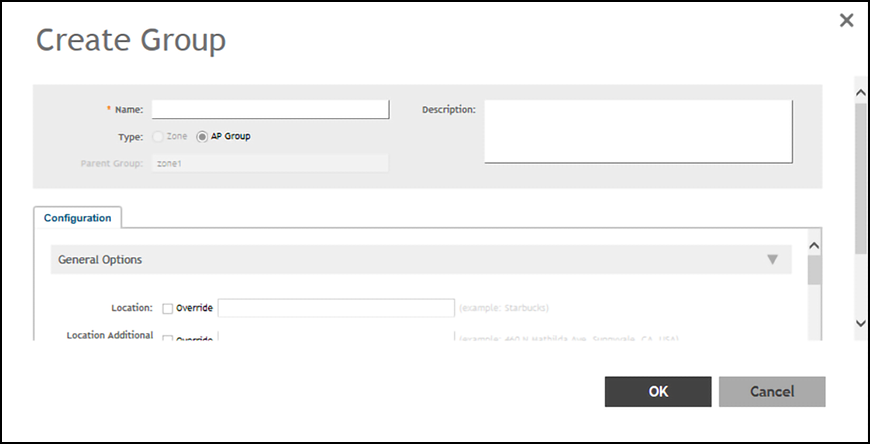

  2. From the System tree hierarchy, select the location (for example: System, Domain, Zone) and click . The following figure appears.

    Creating Groups

  3. Enter the details as explained in the following table.
    Note: You can also edit the configuration of default AP group by selecting the default group and clicking the icon.
  4. Click OK.
  5. Select the APs that will be used in the Network Segmentation and move them into the created AP Group(s).

Note: You can also edit, clone, or delete an AP Group by selecting the options Configure , Clone or Delete respectively, from the Access Points page.
Parent topic: Configuring the vSZ Controller to Prepare for Network Segmentation
