Configuring the Integrated System in the Cloudpath UI

For configuring Network Segmentation, you must begin by adding your SmartZone system as an integrated system in the Cloudpath UI.
Note: You can configure only one integrated system. The integrated system must be a SmartZone cluster management interface.

Follow the steps below to configure SmartZone as an integrated system:

  1. In the Cloudpath UI, navigate to Configuration > Integrated Systems, and click Add Ruckus System.
  2. In the ensuing screen, do the following:
    1. For Display Name, enter a meaningful name for the integrated system (visible only to you, as an administrator).
    2. In the System Type section, click the SmartZone Network Segmentation button to expand the screen, and complete the configuration.

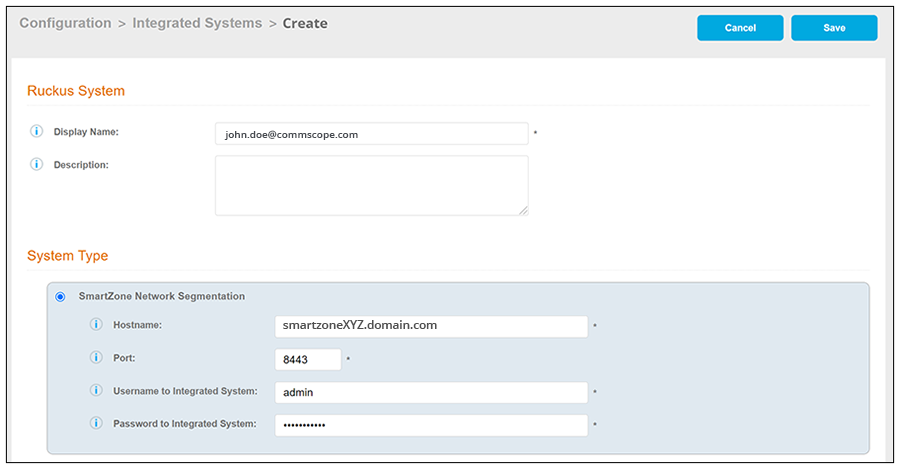

      Configuring the Integrated System

      • Hostname: Host name (FQDN) or IP address of the integrated system.
      • Port: Port number for connecting the integrated system.
      • Username to Integrated System: Username to access the integrated system services.
      • Password to Integrated System: Password to access the integrated system services.
  3. Click Save. You are taken to a list view that shows the newly configured integrated system.

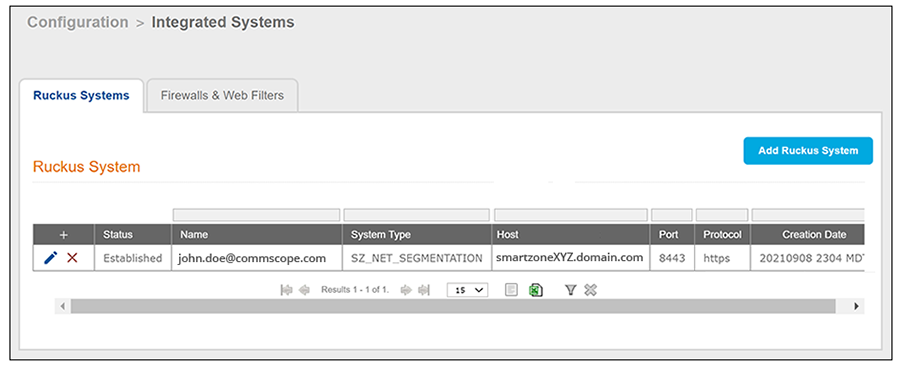

    Newly Configured Integrated System
