CoA Attributes
Adding Attributes
If your switch, AP vendor or controller requires additional CoA Disconnect attributes, they can be added here. If you cannot locate the attribute you need, you can go to Configuration > Radius Server, Attributes tab on the Cloudpath UI to locate and enable the desired attribute.
Attribute Needed for SmartZone
If you are using a SmartZone controller, you must do the following:
- In the Configuration > Radius Server portion of the UI, click the Clients tab.
- Either click Add to add a new client, or click the pencil icon next to an existing client to modify the configuration.
- In the ensuing screen, scroll to the COA Attributes section.
- Click the SmartZone button.

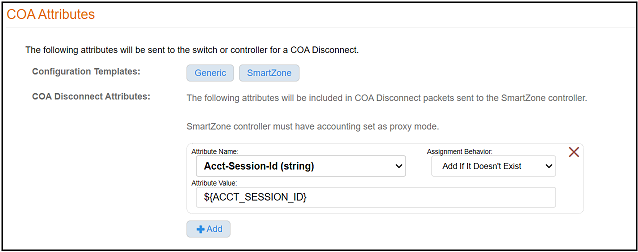

The following illustration depicts the attribute settings described above.
