Schedule Zone Firmware Upgrade
Allows user to setup a schedule time to
upgrade/downgrade single or multiple zone firmware.

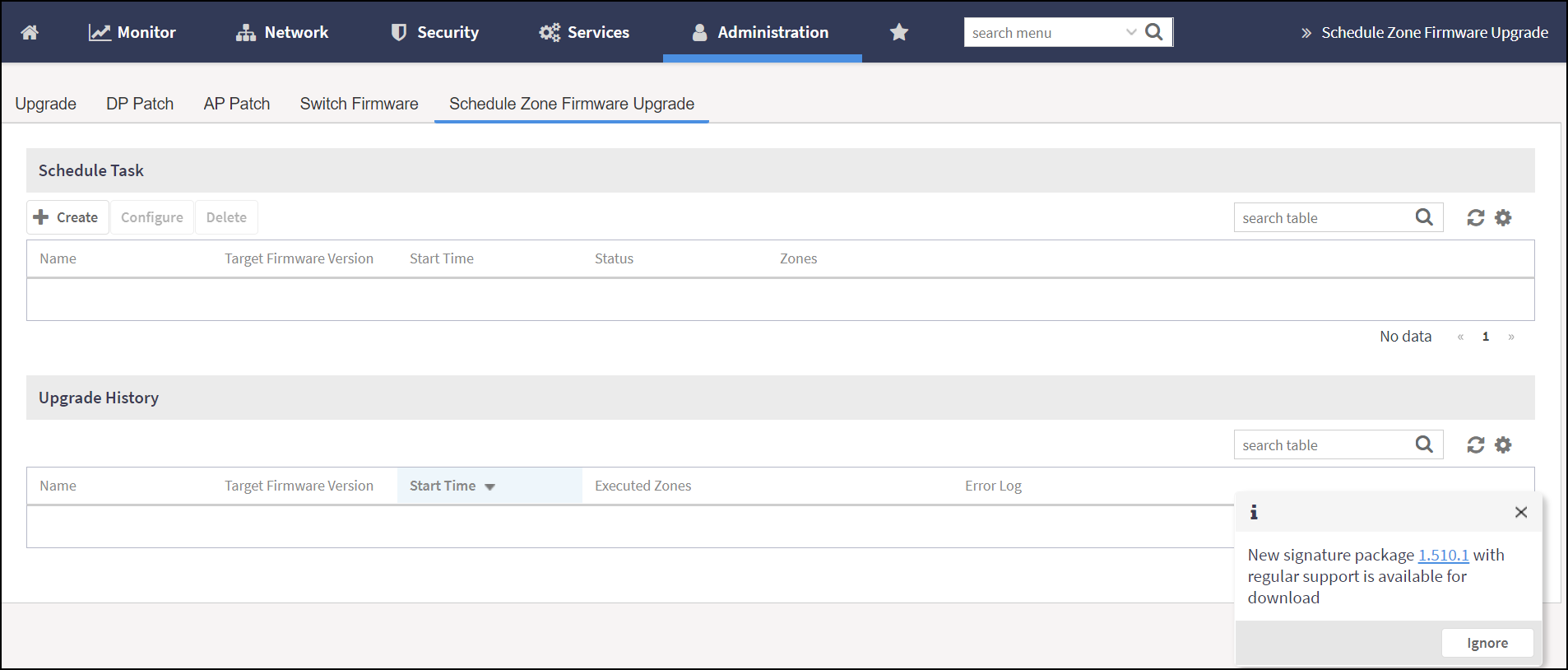

- Go to .

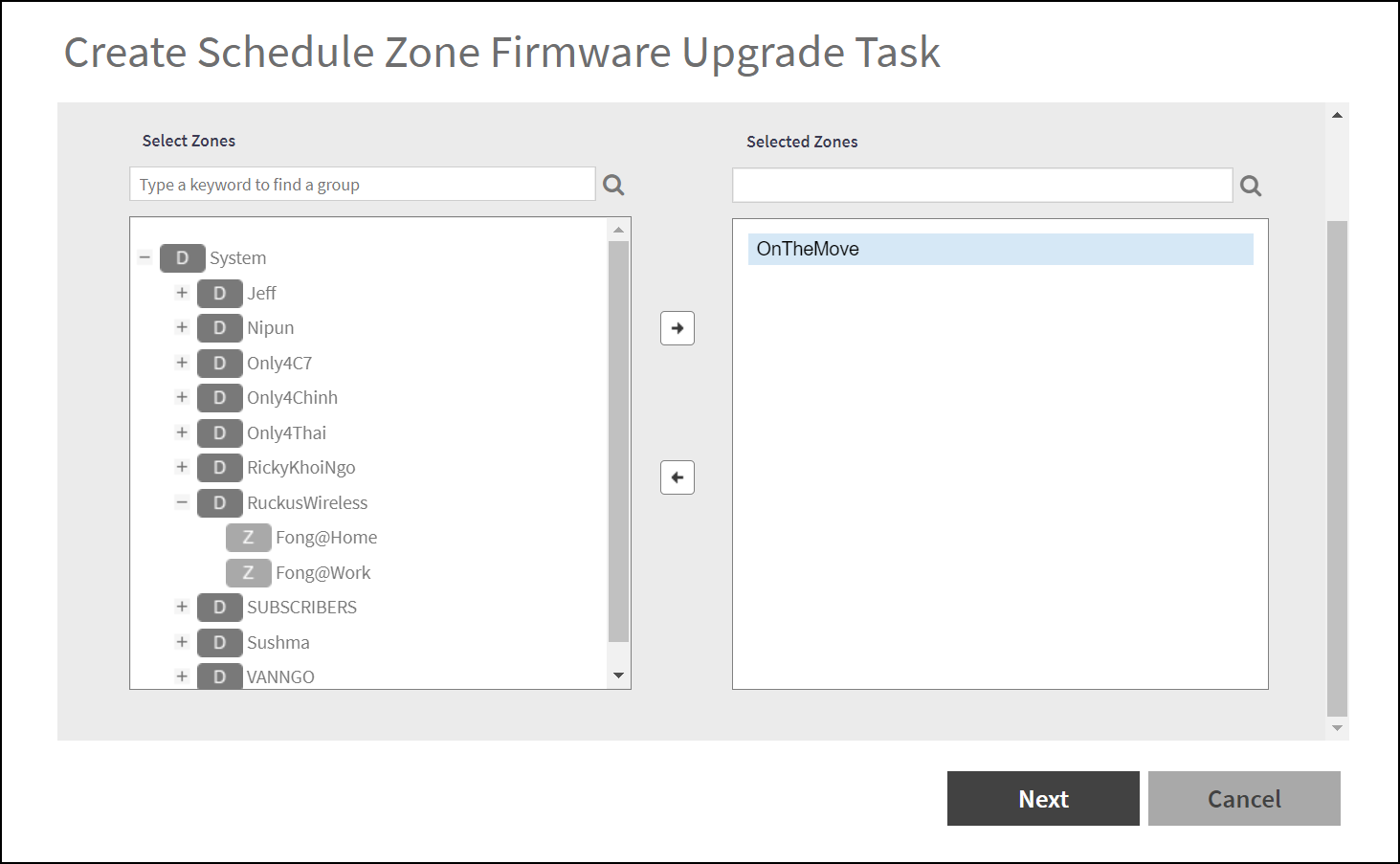

- click Create, the Create Schedule Zone Firmware Upgrade Task page is displayed.
- Select the required zone from the Select Zones list and move it to the Selected Zones list.

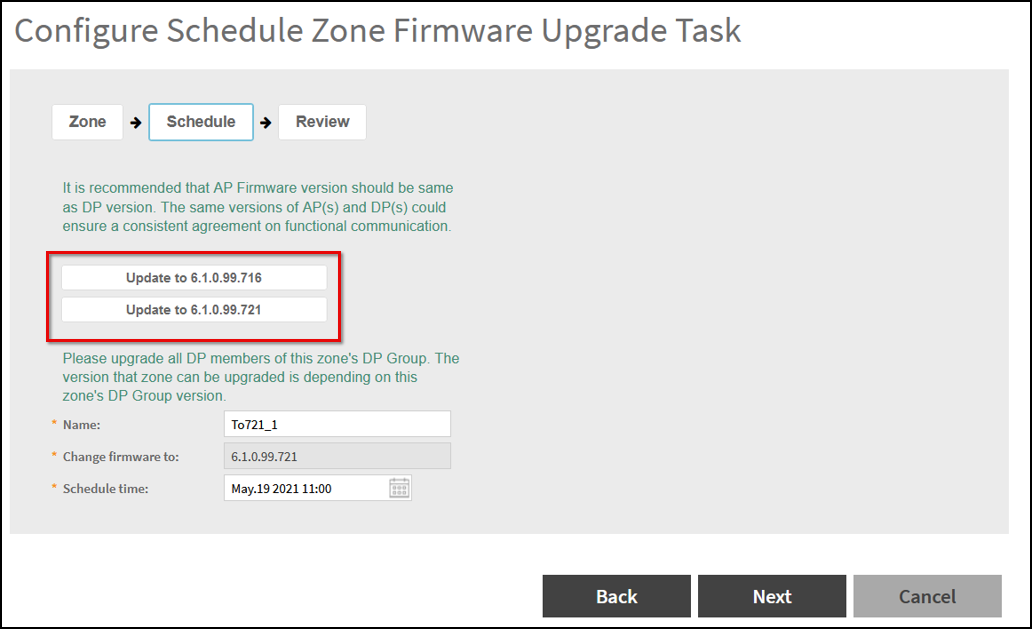

- Click Next, the Schedule tab page is displayed.
- Enter a Name.
- Select the upgrade version from the list. The Change Firmware to field will automatically be updated with the selected version.
- Select the Schedule time.
- Click Next.
- Review the task and click OK.
