Create a MAC Registration Workflow

Note: Creating this workflow includes a step for adding a MAC registration step. At that time, you have the option of creating a new registration configuration or selecting an existing configuration. If you want to create a registration configuration before creating your workflow, refer to Using the MAC Registration Lists Area of the UI

  1. Go to Configuration > Workflow and select Add Workflow.
  2. With the "Create a new Workflow" button selected, click Next.
  3. On the Create Workflow page, enter the new workflow information and Save.
  4. Click Get Started to add a workflow step.
  5. Add an Acceptable Use Policy for the network.
  6. Click the Insert arrow to create a step in the enrollment workflow.
  7. Add a step to split users into two branches.

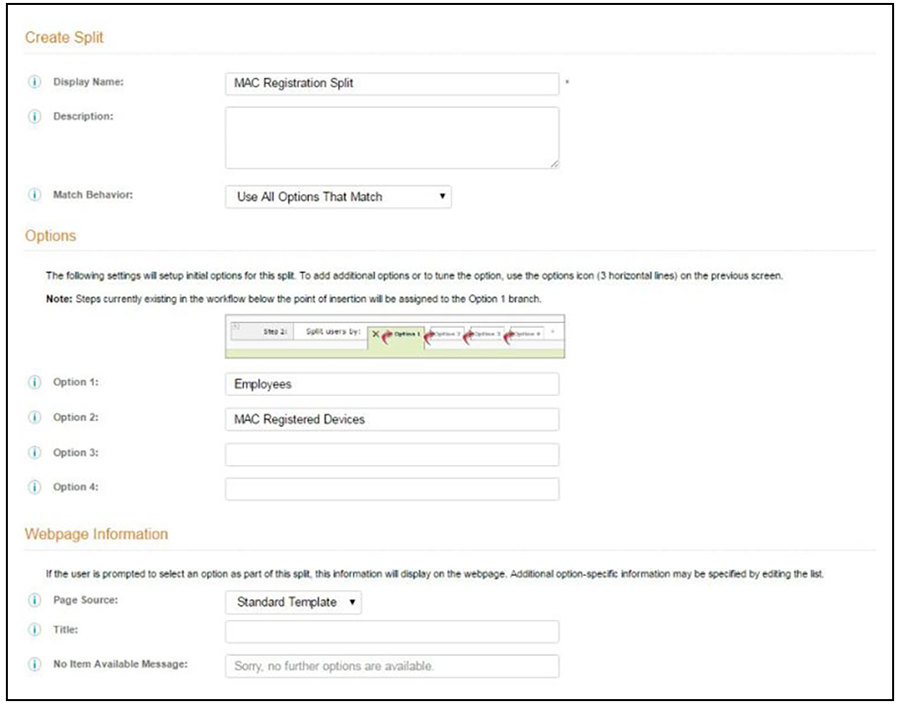

    Create Split

  8. On the Create Split page, in the Options section, enter the names for the two workflow branches.
    For example, you can name Option 1, Employees, and Option 2, MAC-Registered.
  9. Leave the defaults for the other fields and Save.
The named branches appear as tabs in the split workflow step.

The remaining sections describe how to configure the MAC Registered workflow. The Employees workflow is configured per your network needs.

In this section:

  1. How to Create a Filter in the Workflow for MAC-Registered Devices
  2. How to Add a MAC Registration Step to the Workflow
  3. Adding RADIUS Attributes
  4. How to Add a Message to Users
Parent topic: Cloudpath Configuration
