Enable CoA

  1. Navigate to Configuration > RADIUS Server, Status tab.
  2. Enable CoA for the Cloudpath RADIUS server. (Enabled by default).

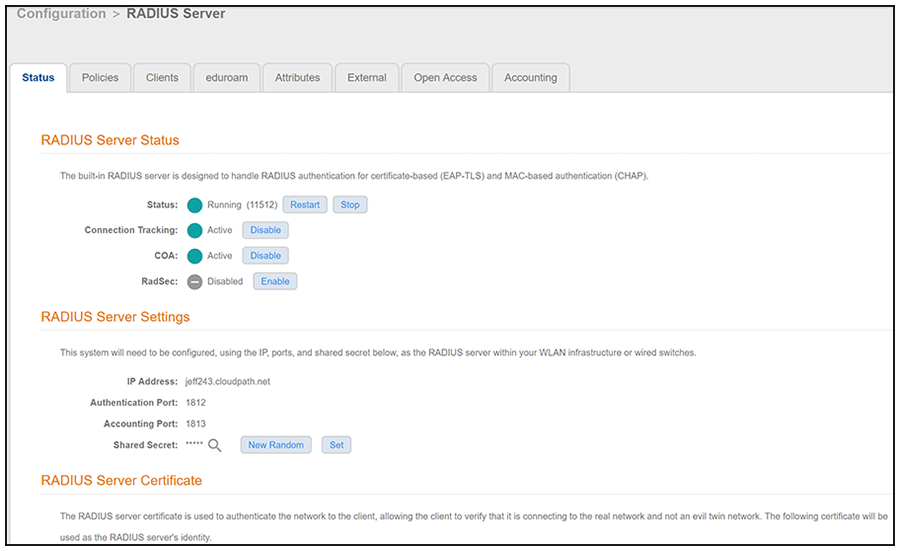

    Cloudpath RADIUS Server Status

  3. On the RADIUS Clients tab, click Add.

    RADIUS Clients Tab

  4. Enter the IP Address of the RADIUS client. The RADIUS client might be an AP, or a NAT device if the AP is behind a firewall.
  5. Enter the Shared Secret of the RADIUS client. This must match the key value on the switch or the controller.
  6. Enable COA must be checked.
  7. new for 5.4
    The COA port is configurable. Its default is 3799, which is used for most COA configurations. In RADSEC configurations, port 2083 is typically used; some Cisco equipment uses port 1700.
    Screen shot updated to show that the COA port is now configurable.

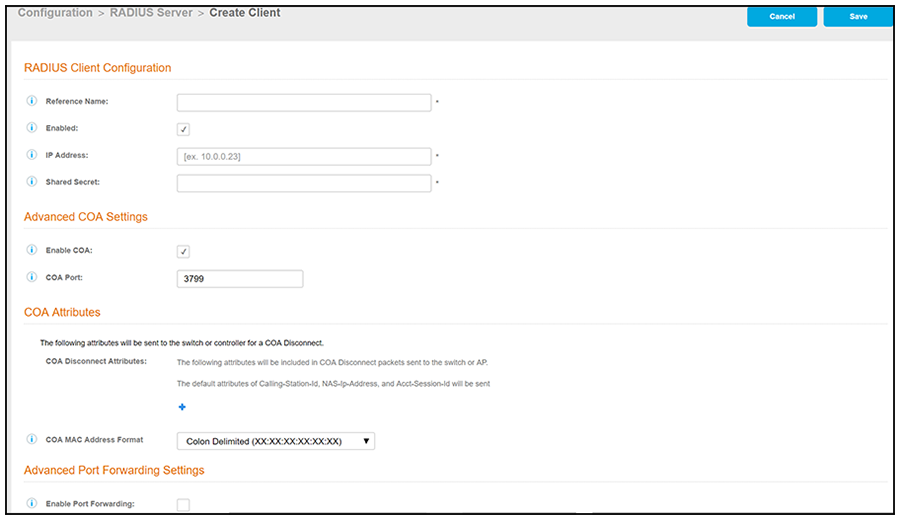

    Add RADIUS Clients

Parent topic: CoA Configuration for Cloudpath Enrollment System
