Set up the AAA Authentication Server on the Ruckus SmartZone Controller

You must enter information about your existing external RADIUS server in the controller user interface.

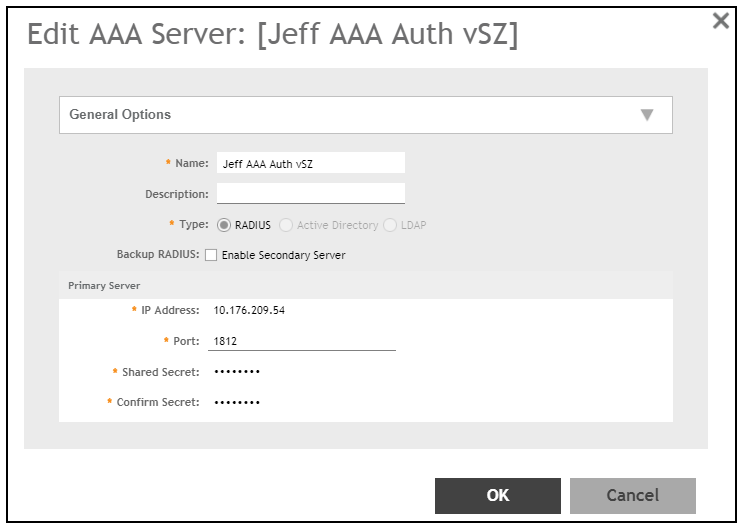

Go to System > Services & Profiles > Authentication on your SmartZone controller. The following screen shows the AAA authentication server configuration.

Create AAA Authentication Server on SmartZone

Enter the following values for the authentication server:

  • Name = Any descriptive name you wish.
  • Type = RADIUS
  • Backup RADIUS: Refer to your controller documentation if you want to use a backup RADIUS server.
  • IP address = The IP address of your external RADIUS server.
  • Port = 1812
  • Shared Secret = The shared secret of your external RADIUS server.

Click OK.

Proceed to Conifguring a PEAP WLAN on a Ruckus SmartZone Controller.
